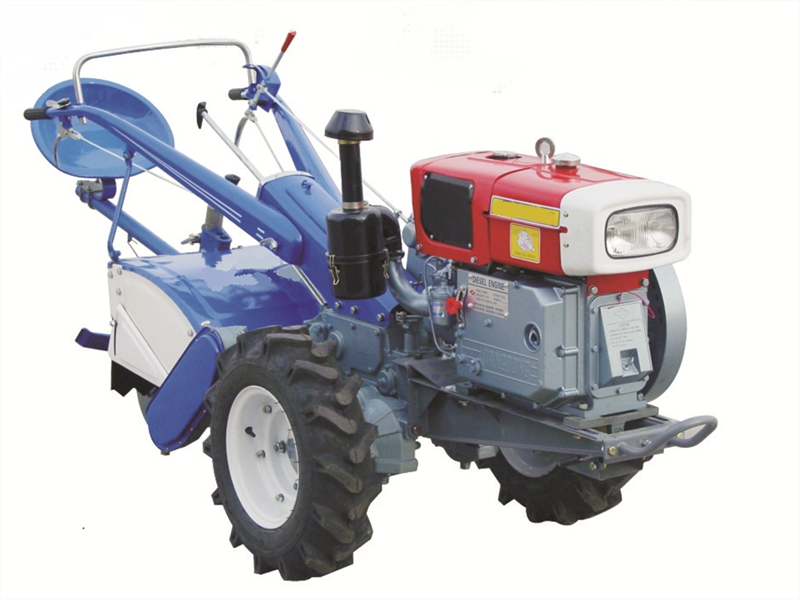

12-20hp walking tractors

Features:
1. Clutch shaft, spindle drive chain, wear well;
2. Metal technology, body, chassis, anti distortion, anti-vibration, performance excellence;
3. Gearbox heavy homework;
4. Waterproof technology;
5. Effectively prevent mud.

  • FM121/FM151/FM181/FM201
  • FOTMA
Model Unit FM121 FM151 FM181 FM201
Structure weight Without rotavator kg 353 363 373 385

With rotavator
458 468 478 488
Working weight(with rotavator) kg 493 508 523 538
Turning speed of rototilling shaft rpm 188/300
Overall dimensions(LxWxH) mm 2680x960x1250 2680x1030x11250
Number of blades pcs 18/24/26
Rototilling width mm 600/800/900
Type of tractor Single axle,dual-purpose for both traction & drive
Travelling speed Forward km/h 1.4,2.5,4.1,5.3,9.4,15.3

Reverse
1.1,3.8
Type size
6.00-12
Wheel track mm 800,740,640,580(normally use 800)
Min.ground clearance mm 185
Min.turning radius m 0.9(with no rotavator)
Model of engine
ZS195 ZS1100 ZS1105 ZS1110
Type of engine
Horizontal 4-stroke
Borexstroke mm 95x115 100x115 105x115 110x115
Total displacement L 0.815 0.903 0.9959 1.0931
Compression ration
20:01 19.5:1 17:01 17:01
Turning speed of crankshaft rpm 2200
1 hour rated output kw/hp 9.3/12.65 10.5/14.3 13.34/18.15 14.7/20
12 hour rated output kw/hp 8.3/11.29 9.8/13.33 12.13/16.5 13.23/18
