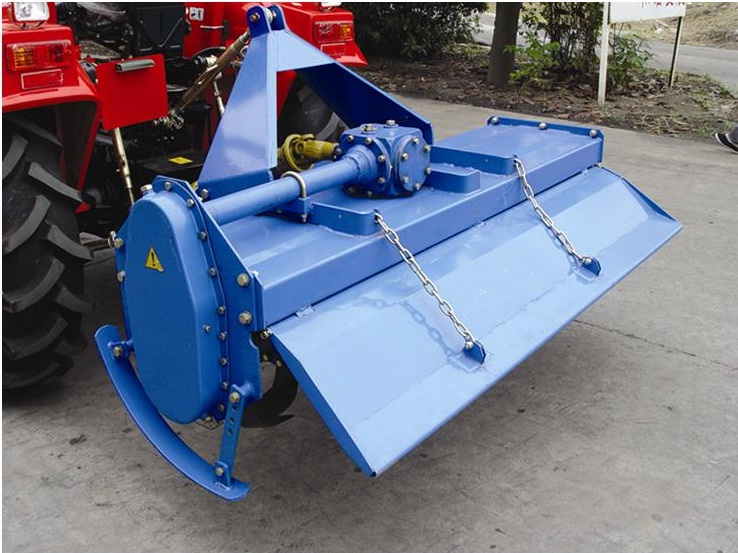

1GN Rotary Tiller

  • FOTMA

Rotary Tiller

Uses:

- Whether you are laying turf aound a golf course or growing small crops, the rotary hoe is pefect for preparing your top soil for planting
- Creates a smooth finish and is perfect for crop and lawn preparation
- Improving productivity,as well as presentation

Features:

- Adjustable rear flap for safety as well as providing a smooth finish
- Height adjustable skids for depth control
- Extra strong design for long life&reliability

 1GN SERIES ROTARY TILLER
Model 1GN90 1GN100 1GN125 1GN135 1GN150
Working width(mm) 900 1000 1250 1350 1500
Weight(kg) 245 260 285 305 350
Number of flanges 5 5 6 6 7
Number of blades per flange 6 (Optional 4)
Hitch type Standard three point hitch
Gearbox lubrication SAE 90 oil
Rotor diameter 18"
Rotor shaft speed 209 rpm at 540 rpm PTO
Recommended maximum PTO power(kw) 18.4 18.4-22.1 22.1-29.4
Dimentions(LxWxH mm) 1100x700x800 1200X700X800 1450X700X800 1550X700X800 1700X700X800
POWER REQUIRED 25hp 25-30hp 35-45hp
