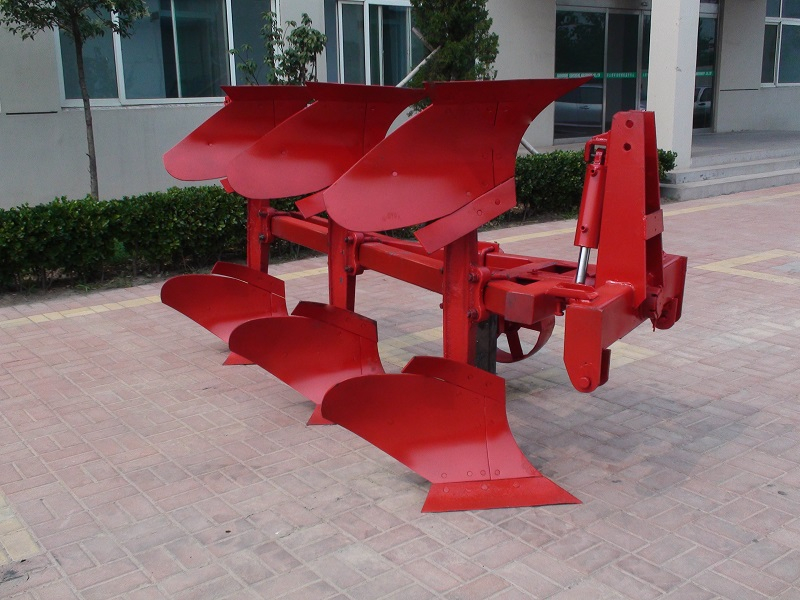

1LF Hydraulic Reversible Plough

1. It has a compact structure;
2. It is suitable for working on all various land.

Model:
  • FOTMA

This series hydraulic reversible plow is designed and manufactured according to the national standard for the share plough used in the dry field in the North. it is suitable for ploughing on the cultivated dry field with the soil resistance less than 1.0kg/cm2, and also can be used in the paddy field in the North, the operation is double direction as shuttle doing,after plough,the land surface if smooth without opened and closed furrows,and less empty lines at both end of the land.operation on slope land,the slope degree will be reduced year by year.

It has a compact structure and suitable for working on all various land. with the well working performance of the machine, after cultivation, the land surface is levelling, the soil clods well crushed and turned over and the furrows is small.

Features:
1. The under-frame and unit-to unit of 1LF reversible plough clearance are adequate to cope whith trashy conditions.
2. The reversible Adding an extra furrow or repositioning units to allow for extra clearance is quick and easy.
3. The plough has special wear-resistant steel bottoms with bar points for toughest ploughing jobs.
4. Bar point bottoms ensure longer life as they can be extended or reversed and re-used till the last possible length.






Model                                  1LF-330 1LF-430 1LF-530 1LF-235 1LF-335 1LF-435 1LF-535
No.of bottoms 3 4 5 2 3 4 5
Working width(mm) 900 1200 1500 700 1050 1400 1750
Working depth(mm) 160-250 160-250 160-250 200-300 160-250 160-250 160-250
Matched power(hp) 55-65 65-90 100-120 40-50 50-70 70-90 90-120
Overall weight 550 750 950 450 650 900 1150
Linkage Stand three point hitched
