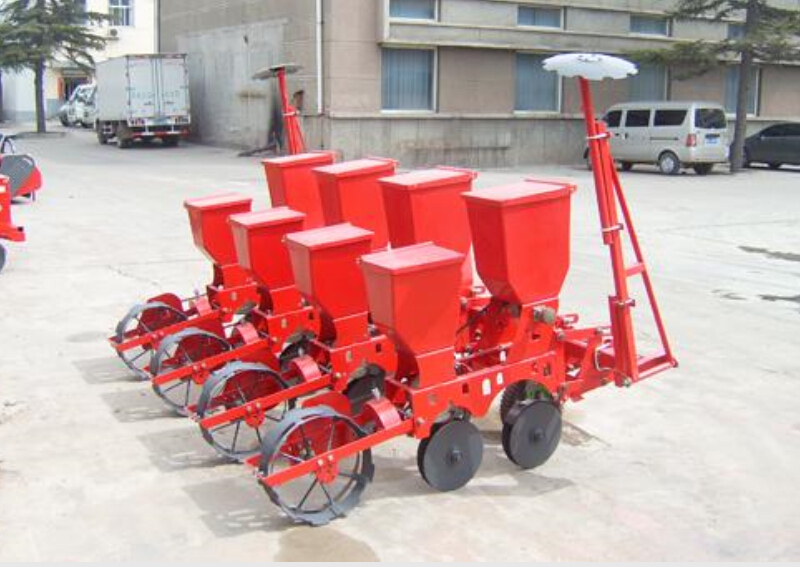

2BFY-4C Series Precision Planter

1. Adopt picker finger seed drill metering precision;
2. Sowing fast and accurate;
3. It is can be sowing corn or soybean by replacing the seeding plate.

Model:
  • FOTMA
2BFY-4C serise precision planter is a kind of tractor-mounted with 29-88 Kw (40-120hp) roller tractor, multifunction farming implement.

Features:
1. Adopt picker finger seed drill metering precision, sowing fast and accurate. Especially the different size of seeds.
2. It is can be sowing corn or soybean by replacing the seeding plate.
3. Adopt unit contouring, perform the same drilling depth and fit for different condition of soil.
4. “V” type ground wheel with big weight, make good performance to the pressing.
5. It is convenience to change the sprockets by adopting double pitch chain , working reliable, tight and elastic tension.
6. Enhance the strength of disc opener and improve the hermetically sealed structure. working reliable and longer lifetim.
Model 2BFY-3C 2BFY-4C 2BFY-5C 2BFY-6C
Overall dimensions                          1900*2600*1400 1900*3500*1400 1900*4400*1400 1900*5300*1400
Weight 540kg 690kg 830kg 980kg
Row space 400-900mm
Seed sowing device Picker finger seed drill(corn) scoop planter(soybean)
Fertilizer device Fluted wheel
Inter-plant distance 76-189mm(corn)/18-44mm(soybean)
Working speed 5-9km/h
Drilling depth 30-60mm
Fertilizering depth 50-80mm
Volume of seed hopper 35*3L 35*4L 35*5L 35*6L
Volume of fertilizer hopper 50*3L 50*4L 50*5L 50*6L
Driving force 29-73kw 36-73kw 53-73kw 53-88kw
Working efficience 0.6-2.4ha/h 0.8-3.2ha/h 1-4ha/h 1.2-4.8ha/h
