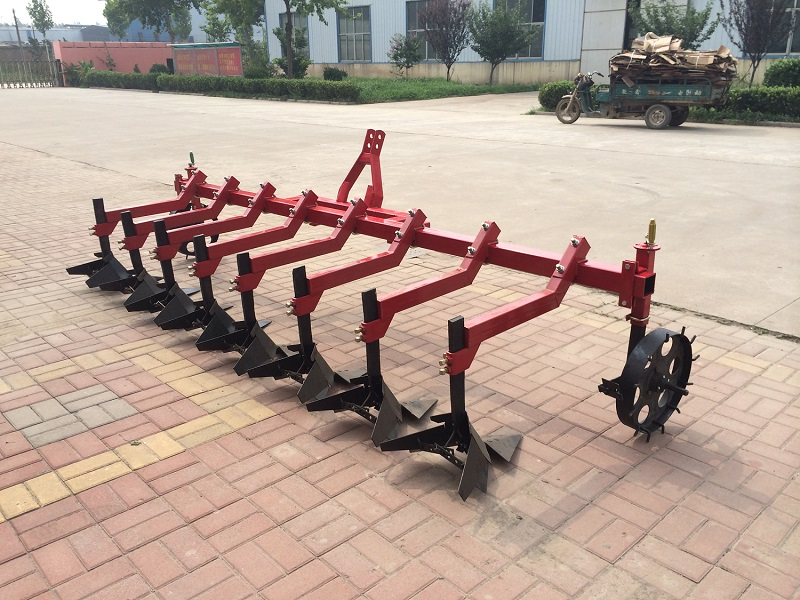

3Z Cultivator Cum Ridger

1. Heat treated, high carbon spring steel tines;
2. Achieve cultivation and ridge shaping at the same time;
3. Adjustable row distance.

  • 3Z
  • FOTMA
3Z cultivator, which is suitable for field intertillage operations in corn, soybean, cotton and potato fields, can complete various field operations at one time including intertillage, subsoiling, ditching, ridging, etc. The machine has the advantages of convenient row pitch adjustment, flexible depth control, easy ridging width adjustment, large range of application, etc.

The cultivator cum ridger were used on medium textured soil. The cultivator cum ridger was the most suitable for inter-row space cultivation, ridge shaping and achievement of the highest possible farm yield, work-rate and productivity. The tynes created the largest cross-sectional area of the ridge and proved to be the most efficient at crushing soil aggregates in the inter-row space and at ridge shaping.

Features:
1. Heat treated, high carbon spring steel tines;
2. Multifunction, can achieve cultivation and ridge shaping at the same time;
3. The distance between rows are adjustable.



Model Unit    3Z-2 3Z-3 3Z-4
Working width mm 1500 2900 3700
Cultivation rows / 3 4 5
Ridging rows / 2 3 4
Ridge spacing mm 450-600 450-600 450-600
Matches power hp 20-30 40-50 70-80
