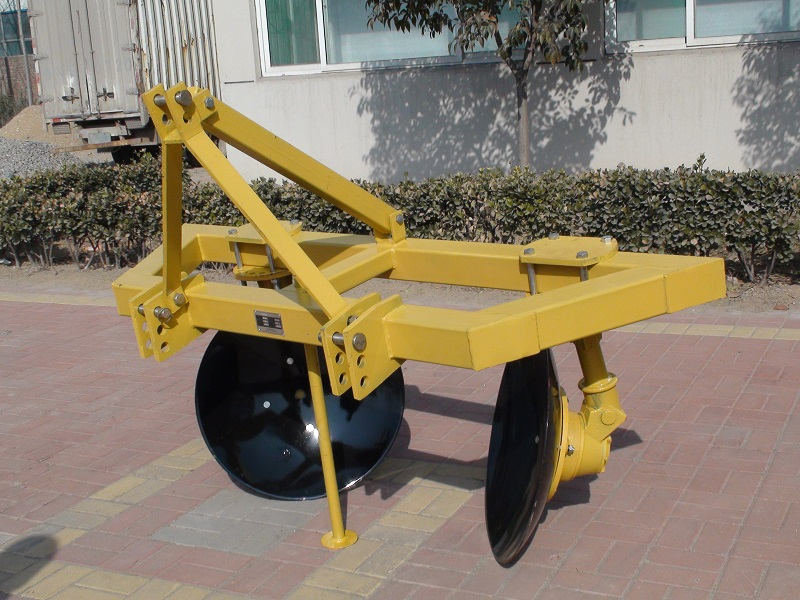

3Z Disc Ridger

1. Adjustable angle between discs;
2. Add top level plate to smooth the soil easily;
3. Square Tubular Frame;
4. Stronger construction.

  • 3Z
  • FOTMA
3Z series of Disc Ridger consists of heavy duty tubular box frame, 3 point hitch system and discs. It is used for making irrigation banks for effective control of flood irrigation or bunds of the size and shape to match crop and soil conditions.

It is mainly used for ridging in the field of potato,beans,vegetables after tillage.it has the advantagess of convenient adjustment in ridging spacing,ridging height,ridging rows and angle,wide range of matched tractors,good ability of adaption and so on.

Features:
1. The discs are adjustable along the frame to vary bund width and height. Also the angle between discs is adjustable.
2. Can add top level plate to smooth the soil easily.
3. Square Tubular Frame, stronger construction.



Model  3Z-80 3Z-120 3Z-180 3Z-260
Working width(mm) 800 1200 1800 2600
Ridging space(mm) 200-450 200-450 300-500 300-500
Ridging height(mm) 150-240 150-240 150-300 150-300
Ovearl weight(kg) 150 160 200 280
matched power(hp) 20 25-30 50 70
