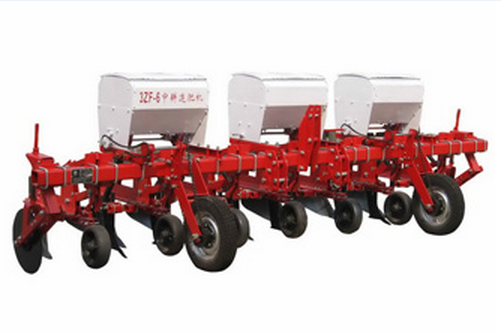

3ZF-6 Cultivator Dressing Machine

1. It is matched with wheeled tractor;
2. It can perform cultivating and cutting straw;
3. It can also perform deep arranging, fertilizing, hilling, ditching, etc.

Model:
  • FOTMA
It is matched with wheeled tractor. being changed different working parts, It can perform cultivating, cutting straw, deep arranging, fertilizing, hilling, ditching, etc. Its row space, Cultivating depth, fertilizing weight, etc. all can be adjusted in bigger scope. Its construction is rational, using and servicing is facility.
Overall dimensions (mm)                                                                                              4600×1730×350
Power (KW)                                                                                                            40~73
Tilling width (cm) 460
Number of rows 6
Spacing (cm) 45-70
Distributing device form Slot wheel outside
Fertilizer box volume (L) 70×3
Working depth (mm) 30~120
Working speed (km/h) 7~10
Pure work hours production (hm2/h) 1.6~2.0
