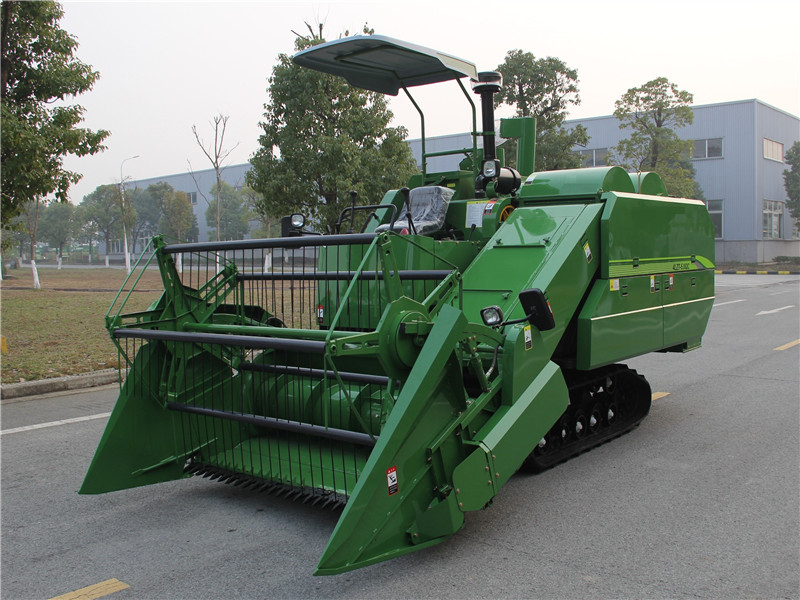

4LZ-2.5Q Rice Combine Harvester

1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.

  • 4LZ-2.5Q
  • FOTMA
  • 4LZ-2.5Q
  • Rice harvesting
  • 1 unit
  • T/T or L/C at sight
  • 12 months since arrival at destination port
  • Wuhu or Shanghai, China
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.

Main Features
1.Equipped with high-quality engine of 110 horse power, giving a strong driving force;
2.Automatically 270°Hydraulic unloading type to improve working efficiency; Rotary grain tank, easy for maintenance;
3.Equipped with luxury cab with air conditioner;
4.With large cutting width of 2500mm, and 600mm wider paddy field track, better pass ability;
5.Simple operating console, hydraulic chassis driving system.
6.Equipped with double pump and motor, more easy for steering and transmission.
Model 4LZ-2.5Q
Feed capacity(kg/s) 2.5
Dimension(L*W*H)(mm) 4890*2300*2840
Weight(kg) 2565
Engine
Brand Xinchai
Type 4-cylinder in-line water cooling
Rated power(hp) 75
Speed(r/min) 2400
Fuel Diesel
Fuel consumption(kg/hm²) ≤32
Drive system
Track

Specification 90mm × 48 section × 400mm
Track gauge(mm) 950
Min. ground clearance(mm) 240
Transmission Mechanical + stepless hydraulic speed regulating (HST)
Number of shifting positions Stepless speed
Cutting
Reel

Type Eccentric drawing-tooth
Diameter 900
Cutting width(mm) 2000
Blade width(mm) 2000
Header auger Spiral blade+Eccentric telescopic rod rack
Grain unloading
Grain unloading method Hydraulic automatic
Grain Tank(m³) 1.1
