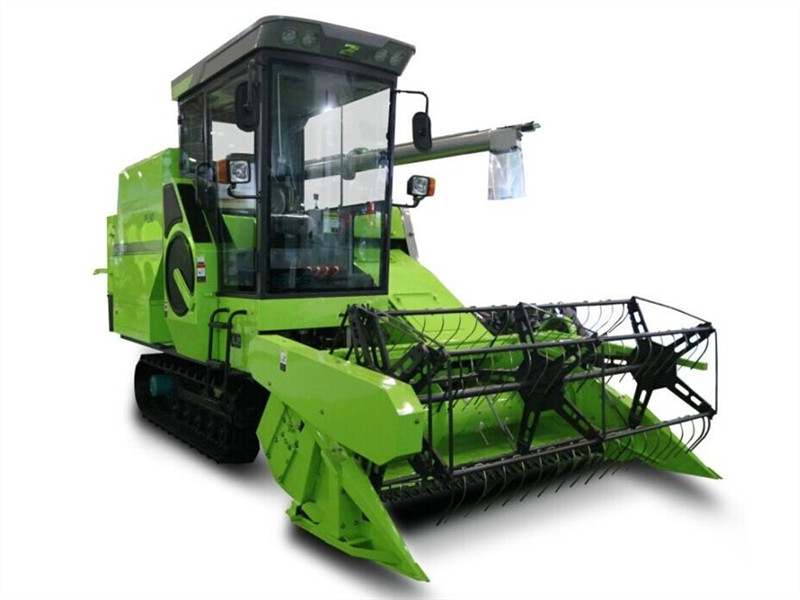

4LZ-6.0QA Rice Combine Harvester

1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.

  • 4LZ-6.0QA
  • FOTMA
  • 4LZ-6.0QA
  • Rice harvesting
  • 1 unit
  • T/T or L/C at sight
  • 12 months since arrival at destination port
  • Wuhu or Shanghai, China
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.

Main Features
1.Equipped with high-quality engine of 110 horse power, giving a strong driving force;
2.Automatically 270°Hydraulic unloading type to improve working efficiency; Rotary grain tank, easy for maintenance;
3.Equipped with luxury cab with air conditioner;
4.With large cutting width of 2500mm, and 600mm wider paddy field track, better pass ability;
5.Simple operating console, hydraulic chassis driving system.
6.Equipped with double pump and motor, more easy for steering and transmission.
Model 4LZ-6.0QA
Feed capacity(kg/s) 6.0
Cabin Luxurious cab with air conditioning
Weight(kg) 4800
Overall dimension(mm) 5500 x2700x3000mm
Engine




Type 4-cylinder in-line water cooling
Rated power(kw) 81
Speed(r/min) 2400
Fuel Diesel
Fuel consumption(kg/hm²) ≤33
Drive system-hydraulic chassis





Track

Specification 90 mm× 60section× 600mm
Track gauge 1300
Min. ground clearance(mm) 550
Transmission Hydraulic motor
Number of shifting positions Stepless speed
Walking speed(km/h) 0-7.2
Cutting




Reel

Type Eccentric dial-tooth
Diameter 900
Cutting width(mm) 2500
Blade width(mm) 2500
Header auger Spiral blade+Eccentric telescopic rod rack
Grain unloading part

Grain unloading method 270° hydraulic unloading type
Grain Tank 1.5(Hydraulic)
