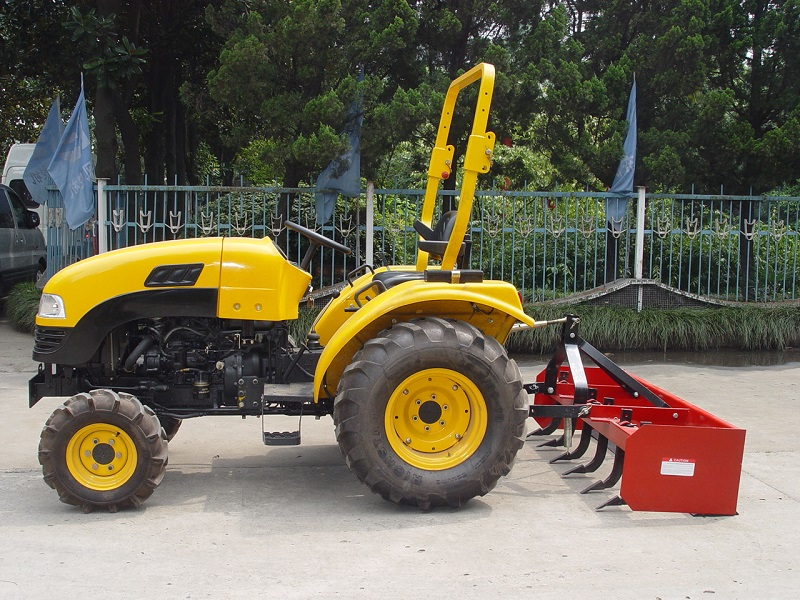

Box Scraper

1. Height adjustable;
2. Removable tynes;
3. Removable rear grading blade.
Model:
Quantity:
  • FOTMA

Uses:
- All ripping, grading and leveling can be in the one process;
- Perfect implement for breaking up, spreading&leveling top soil while tilling as well;
- Very useful for removing a thin layer of top soil.

Features:
- Height adjustable and removable tynes;
- Extra strong frame designed for long life operation;
- Removable rear grading blade.
Box Scaper Specifiations
MODEL 4BS 5BS 6BS 7BS
DIMENSIONS(L*W*H)                 1220*700*900mm                    1520*700*900mm                  1820*700*900mm                     2200*700*900mm
WORKING WIDTH 1200mm 1500mm 1800mm 2000mm
STRUCTURE WEIGHT 166kg 176kg 200kg 225kg
POWER REQUIRED 15-20hp 20-35hp 25-45hp 30-55hp
