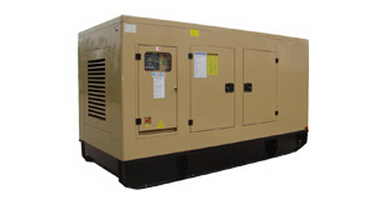

Cummins Series 450-800kw Generator(50HZ)

Quantity:
  • Cummins

Model of Genset GB450SC GB500SC GB600SC GB720SC GB800SC
Specifications of Generator set Frequency 50HZ
Voltage 380/220V or 400/230V
Prime output(KW) 420KW 500KW 600KW 720KW 800KW
Standby output(KW) 505KW 550KW 660KW 800KW 880KW
Power factor 0.8 lagging
Phase 3-phase
Engine model KTAA19-G5 KTAA19-G6 KTA38-G2 KTA38-G2A KTA38-G5
Type  In-line,4Cycle,turbocharged and intercooled V-Type,4Cycle,turbocharged and intercooled
Number of Cylinders 6 6 12 12 12
Bore x Stroke 159 x 159 159 x 159 159 x 159 159 x 159 159 x 159
Displacement (L) 19 19 38 38 38
Engine Speed(rpm/min) 1500
Engine prime power(KW) 470 549 664 813 880
Engine standby power(KW) 555 610 731 895 970
Starting System Electric – 24V DC
Fuel Tank Capacity (L) 1000L BASE FUEL TANK  1500L BASE FUEL TANK
Fuel consumption(L) at full load 140 156 160 184 209
At ¾ Load 105 116 123 141 161
At ½ Load 73 80 87 99 113
Alternator model(Stamford) HCI544E HCI544F HCI534E HCI534F HCI634G
Insulation Class H
Voltage Regulator Automatic
Control panel Manual, AMF as optional
Emergency Stop System Low oil pressure, high water temperature, Over-speed and over load
DIMENSIONS AND WEIGHTS




Open type Dimension(LxWxH)(mm) 3500x1420x2220 3500x1420x2220 4500x1700x2400 4500x1700x2400 4700x1800x2500
Weight(kg) 5000 5500 8000 8500 9500
