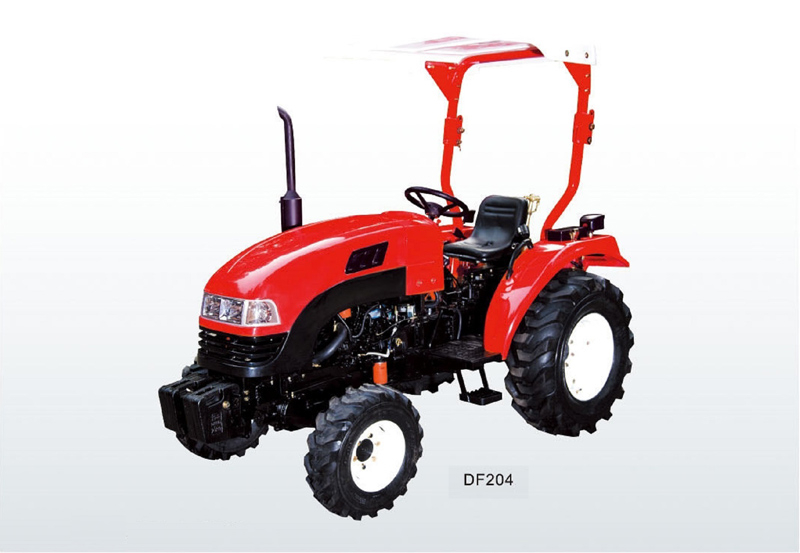

DF AU 20-25hp Tractor

20- 25hp, 2WD & 4WD for Australia market
Quantity:
  • Dongfeng, DF

MAIN DISPOSITIONS:

double-function clutch
Twin turning speeds of P.T.O.( Speed 540/1000 rpm)
power steering
(4+1)×2 gear box
fiberglass hood
combined meters
spring system
disc brake
swing draw bar

OPTIONS:

folding ROPS
sun shade
hydraulic outlet
rear balance

Tractor Parameters Model DF200 DF204 DF250 DF254
Drive Type 2WD 4WD 2WD 4WD
Overall Dimensions L×W×H(mm): 3220×1360×1460
(Height to steering wheel)
Wheel Track(mm) Front 975 984 975 984
Rear 1,020,112,012,201,320
Wheel Base(mm) 1619 1638 1619 1638
Ground Clearance(mm) 400 292 400 292
Construction Mass(kg) 1040 1190 1040 1190
Theoretical(km/h) Forward 1.11,1.29,2.90,5.06,5.75,9.26,15.02,26.02
Reverse 1.44,7.45
Engine Specifications Model 380T ZN390T
Type 3-cylinder,Upright inline cylinder, radiator cooling,   4-storke cycle, swirl chamber
12-hour Rated Power(kW/hp) 14.7/20.0 18.4/25.0
Rated Speed(rpm) 2400 2350
Bore ×Stroke(mm) 80×90 85×90
Total Displacement(L) 1.375 1.532
Drive System Clutch dual-stage
Gear Box (4+1)×2
Main Drive one pair of spiral bevel gears
Differential bevel gear
Differential Lock jaw lock
Final Transmissions spur gear,external gearing
Traveling Mechanism Tire  Front 4.00-16 6.00-12 4.00-16 6.00-12
Rear 8.3-24 83.-24 9.5-24 9.5-24
Steering Gear full hydraulic steering
Brake disc typre
Working Device Hydraulic System Lifting Capacity at 610 mm Behind Lift Point(kg) 432kg
3-Point Suspension category: Ⅰ
P.T.O. Shaft Rotating Speed(rpm) 540/1000
Spline Size 6-ф35 Rectangular Spline
