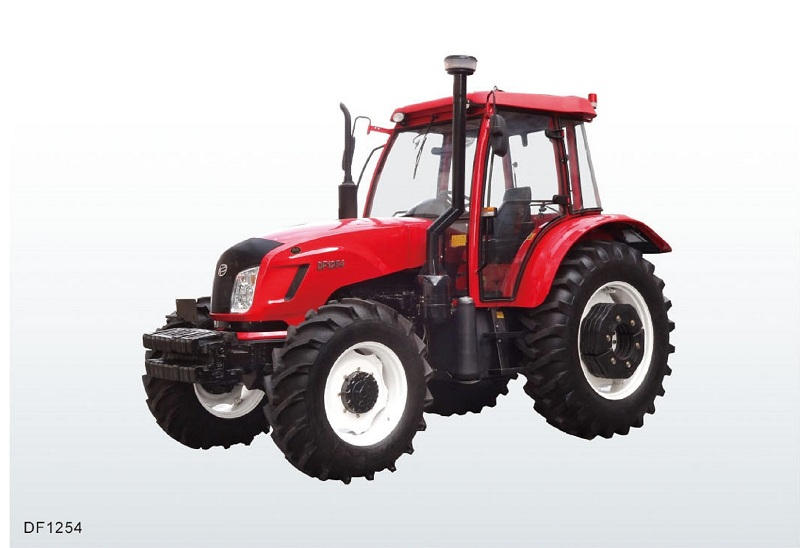

DF1254 Tractor

125HP, 4WD

  • Dongfeng, DF
STANDARD FEATURES

Side shift 12F/4R
Independent PTO 540/1,000 rpm
Single stage Clutch
Power steering
Safety start switch
Metal hood
Spring suspension seat
Cat.2, 3-pt hitch
AG tires

OPTIONAL FEATURES

Hydraulic outlets
Air pump
Foldable ROPS
Sunshade (ROPS)
Cab
Paddy tires

Model DF1254
ENGINE
Type 6 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW) 125(91.9)
PTO, HP(kW) 107.5(79.0)
Rated Speed, rpm 2300
Displacement, L 7.42
Fuel Tank Capacity, L 135
Drive Train
Transmission Collar shift 12F/4R
Fully synchro mesh
Min/Max forward speed, km/h 1.9-31.1
Steering Power
Clutch Dry, independent, dual-function
Brake Wet, multi-disk
Differential Lock Mechanical
Drive Type 4WD
PTO
Rear PTO, rpm Independent 540/1,000
Spline Size 6-Ø35 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement Pump. L/min 46
Remote Valves (Option) 2
3-Point Hitch CAT. 2
Control Type Position, Draft, Mixed control
Lift Capacity 610 mm behind@ lift balls, kg 2600
Dimensions
Overall Length, mm 4.820
Overall Width), mm 2,327
Overall Height(Top of Cab), mm 3,000
Wheelbase, mm 2,665
Min. Ground Clearance, mm 478
Min.Turning Radius, m 4.3
Weight, kg 4.375
Tires
AG, Front /Rear 14.9-26/18.4-38
