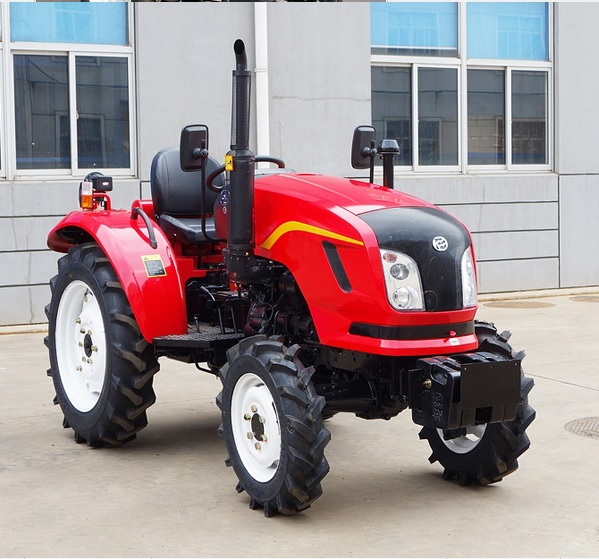

DF204 Tractor

20HP, 4WD

  • Dongfeng, DF
Main Dispositions:

 Dual-function clutch
 Twin turning speeds of P.T.O.
 Power steering
 Safe start switch
 Fiberglass hood
 Combination meters
 Quality seat system
 Seat belt

Options:

 Folding ROPS
 Sun shade
 Spring seat system
 Turf tyre
 Industrial tyre
 EPA Engine
 Hydraulic outlet

Model DF200 DF204 DF250 DF254
ENGINE
Type 3 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW) 20(14.7) 25(18.4)
PTO, HP(kW) 18(13.2) 22.5(16.5)
Rated Speed, rpm 2400 2350
Displacement, L 1.375 1.532
Fuel Tank Capacity, L 30 30
Drive Train
Transmission 8F/2R 8F/2R
Sliding gear mesh Sliding gear mesh
Min/Max forward speed, km/h 1.11-26.2 1.11-26.2
Steering Power
Clutch Dry, dual-stage
Brake Dry, disk
Differential Lock Mechanical
Drive Type 2WD 4WD 2WD 4WD
PTO
Rear PTO, rpm Live 540/1,000
Spline Size 6-ø35 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement Pump, L/min 24
24
Remote Valves (Option) 2
3-Point Hitch CAT. 1
Lift Capacity 610 mm behind@ lift balls, kg 432
Dimensions(w/AG Tires)
Overall Length, mm 3,320 3,320
Overall Width, mm 1,360 1,360
Overall Height(Top of steering), mm 1,500 1,500
Wheelbase, mm 1,619 1,638 1,619 1,638
Min. Ground Clearance, mm 290
Min.Turning Radius, m 2.40
Weight, kg 1,040 1,190 1,040 1,190
Tires
AG, Front /Rear 4.00-16/8.3-24 6.00-12/8.3-24 5.00-15/9.5-24 6.00-12/9.5-24
Turf, Front/Rear N/A 26x7.5-12/11.2-20 N/A 26x7.5-12/11.2-20
Industrial, Front/Rear N/A 7-12, 12.5/80-18 N/A 7-12, 12.5/80-18
