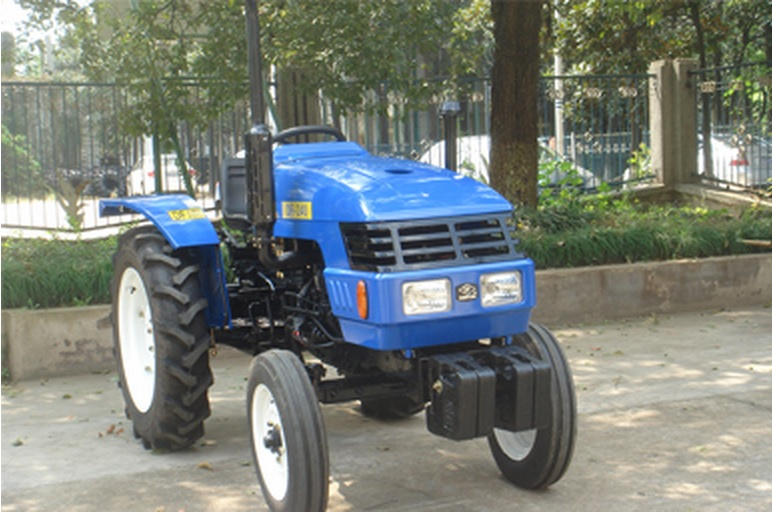

DF240 Tractor

24HP, 2WD

  • Dongfeng, DF
This tractor series has the advantages of economic fuel consumption, easy operation, harmonious appearance, compact construction and simple maintenance. It has eight forward gears and two reverse gears, the speeds range from 1.11 to 26.20 km/hr. The tractor is equipped with the linkage type double-acting clutch. It can be used for many farming jobs such as rototilling, plowing, harrowing, seeding, inter-row cultivation and harvesting if suitable farm implements are matched. Meanwhile, this tractor series may be provided with the intensified function of transporting, i.e. the air brake facilities (optional) for trailer, which can improve the safety conditions of a transporting unit (i.e. a four wheel tractor hitched with a trailer for transportation). Really, this tractor series is of an ideal type for the small or medium farms.

Main Dispositions:
(1)Single-function clutch
(2)Twin turning speeds of P.T.O.( Speed 540/730 rpm)
(3)Mechanical steering
(4)Safe start switch
(5)Metal sheet hood
(6)Single meters
(7)Quality seat system

Options:
Dual-function clutch
Power steering
 Folding ROPS
 Sun shade
 Spring seat system
 Turf tyre
 Industrial tyre
 EPA Engine
 Hydraulic outlet
Tractor
Parameters

Model

DF-240

Drive Type

2WD

Overall Dimensions
L×W×H(mm)

2661×1158×1365

Wheel Track(mm)

Front

975(Usually use)
1175, 1275,1375

Rear

1020, 1120, 1220, 1320

Wheel Base(mm)

1492

Ground
Clearancre(mm)

Under Front Axle

400

Under Rear Axle


Rated Traction

Force(N)

In Paddy Fields

3000

In Dry Fields

4200

Construction Mass(Kg)

1040

Min. Turning Radius(m)


Theoretical
Speed(Km/h)

Forward

1.12, 1.49, 2.89, 4.81, 5.79, 7.74, 14.96, 24.94

Reverse

1.31, 6.80
Engine
Specifications

Model

KM385BT

Type

3-cylinder,Upright inline cylinder,radiator cooling,4-stroke cycle,direct-injection

12-hour Rated Power(Kw/hp)

17.6/24

Rated Speed(rpm)

2400

Bore×Stroke(mm)

80×90

Total Displacement(L)

1.532
Drive
System

Clutch

single

Gear Box

4×(3+1)

Main Drive

One Pair of Spiral Bevel gears

Differential

Bevel Gear

Differential Lock

Sliding pin,foot operated

Final Transmissions

Planetary reduction gear sleevegear
Travelling
Mechanism

Tyre

front

5.00-15 (herringbone pattern)

rear

9.5-24(herringbone pattern)

Steering Gear

Hydraulic steering or mechanical

Brake

sealed shoe
Working
Device

Hydraulic
System

Lifting Capacity at
610 mm Behind Lift
Point(Kg)

1100

3-point Suspension

Category:Ⅱ

P.T.O.Shaft

Rotating
Speed(rpm)

540/730

Spline size

6-φ35 Rectangular spline
