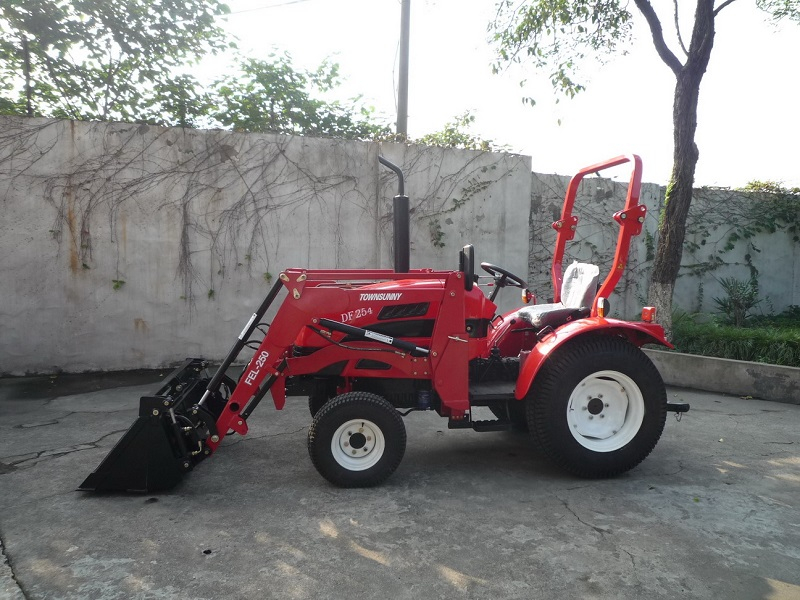

DF254EC Tractor

25HP, 4WD

  • Dongfeng, DF

Tractor Parameters Dongfeng brand EC series   DF-254/304/354/404 tractor specifications form
Model DF-254 DF-304 DF-354 DF-404
Drive Type 4×4 4WD 4×4 4WD 4×4 4WD 4×4 4WD
Overall Dimensions   L×W×H(mm): 3056×1450×2320  (Height to the top of ROPS) 3308×1400×2400   (Height to the top of ROPS)
Wheel Track(mm) Front 1185 1185 1200 1200
Rear 1100-1300  1260-1380
Wheel Base(mm) 1676 1676 1818 1818
Ground Clearance(mm) Under Front Axle 292 358 358 378
Under Rear Axle 290 378 378 405
Rated Traction Force(N) In Paddy Fields 4435 4950 5160 5760
In Dry Fields 6410 6940 7230 7860
Construction Mass(kg) 1385 1385 1485 1485
Min. Turning Radius(m) 2.4 3.2 3.2
Theoretical Speed (Without creeper gear(km/h) Forward 1.43,2.35,3.78,5.08,7.39,12.18,19.60,26.32 1.75,2.88,4.63,6.22,9.05,14.90,23.98,  32.21
Reverse 1.88, 9.74 2.30,11.92
Theoretical Speed(With creeper gear(km/h) Forward N/A  N/A   N/A  N/A
Reverse N/A   N/A   N/A  N/A
Engine Specifications Model 3LS25B  3LS30B  4LD35B 4LD40B
Type 3-cylinder Vertical, water cooled 4 stroke diesel 3-cylinder Vertical, water cooled 4 stroke diesel
Rated Power (kw/hp) 19/25 22/30 25.7/35 29.4/40
Rated Speed(rpm) 2400 2400 2400 2400
Bore × Stroke(mm)  90×95  90×95  90×100 90×100
Total Displacement(L) 1.813 1.813 2.544 2.544
Drive System Clutch dual-funtion clutch dual-funtion clutch
Gear Box (4+1)×2 (4+1)×2
Main Drive One Pair of Spiral Bevel Gears One Pair of Spiral Bevel Gears
Differential Bevel Gear Bevel Gear
Differential Lock Jaw Lock Jaw Lock
Final Transmissions Spur Gear, External Gearing Spur Gear, External Gearing
Travelling Mechanism Tyre Front 6.00-12   6.00-12 6.50-16 7.5-16
Rear   8.3-24 or 9.5-24 9.5-24 11.2-24 12.24
Steering Gear Full Hydraulic Steering Full Hydraulic Steering
Brake sealed shoe sealed shoe
Working Device Hydraulic Lifting Capacity at 610 mm Behind Lift Point(kg) 432kg 665kg
System 3-Point Suspension Category: I Category: I
P.T.O. Rotating Speed(rpm) 540/1000 540/1000
Shaft Spline Size 6-ф35 Rectangular Spline 6-ф35 Rectangular Spline
