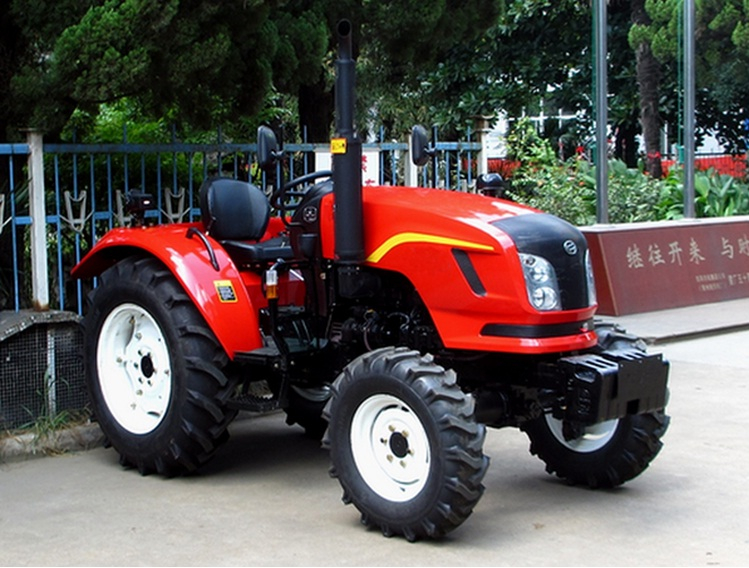

DF354 Tractor

35HP, 4WD

  • Dongfeng, DF
Mode DF-354
Standard features:
(1)3-cylinder engine
(2)Dual-function clutch
(3)Twin turning speeds of P.T.O.
(4)Power steering
(5)Fiberglass hood & fenders
(6)Independent meters
(7)Front balance
(8)Disc brake
(9)Swing drawbar

Options:
Specification
(1) Folding ROPS
(2) Sun shade
(3) Rear wheel ballast
(4) Hydraulic output


Tractor
Parameters
Model DF-354
Drive Type 4WD
Overall Dimensions L×W×H(mm): 3370×1485×1620
Wheel Track(mm) Front 1200
Rear 1100, 1200, 1300, 1400
Wheel Base(mm) 1739
Ground Clearance (mm) 358
Rated Traction Force(N) In Paddy Fields 5160
In Dry Fields 7230
Construction Mass(kg) 1385
Min. Turning Radius(m) 2.80
Theoretical
Speed (km/h)
Forward 1.67, 2.74, 4.41, 5.92
8.62, 14.20, 22.85, 30.68
Reverse 2.19, 11.30
1638E19ngine
Specifications
Model TY395
Type 3-cylinder, Vertical, in-line cylinder arrangement,
radiator cooling, 4-stroke cycle, direct injection
Rated Power(kW) 25.8
Rated Speed(rpm) 2400
Bore ×Stroke(mm) 90×105
Total Displacement(L) 2.23
Drive
System
Clutch Linkage type, double-acting clutch
Gear Box (4+1)×2
Main Drive One Pair of Spiral Bevel Gears
Differential Bevel Gear
Differential Lock Jaw Lock
Final Transmissions Spur Gear, External Gearing
Traveling
Mechanism
Tire  Front 6.50-16
Rear 12.4-24
Steering Gear Hydraulic power steering
Brake Disc type
Hydraulic
System
Lifting Capacity at 610 mm Behind Lift Point(kg) 580
3-Point Suspension Category: Ⅰ
P.T.O. Shaft Rotating Speed(rpm) 540/1000
Spline Size 6-ф35 Rectangular Spline
