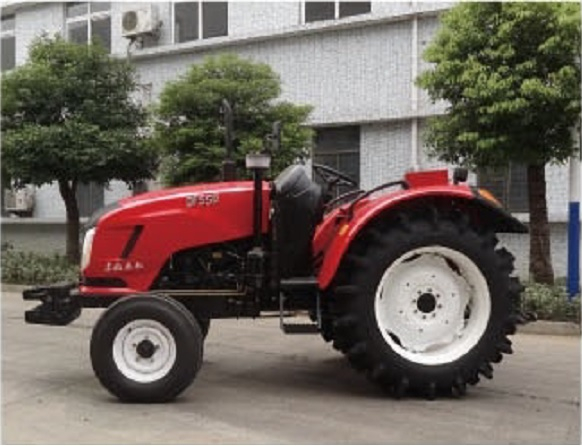

DF450 Tractor

45HP, 2WD

  • Dongfeng, DF
Main Dispositions:
Dual-function clutch
Twin turning speeds of P.T.O.
Power steering
Safe start switch
Metal hood
Combination meter
Absorber seat with safety belt
Disc brake

Options:
Sunshade
Foldable RPOS
Rear wheel ballast
Hydraulic output
Air pump
Cabin


Tractor
Parameters
Model DF-450 DF-454 DF-500 DF-504
Drive Type 2WD 4WD 2WD 4WD
Overall Dimensions L×W×H(mm): 3780×1615×2250
Wheel Track(mm) Front 1300
Rear 1200-1500
Wheel Base(mm) 1975 1980 1975 1980
Ground Clearance (mm) 450 370 450 370
Rated Traction Force(N) 9500 11500 9500 12500
Construction Mass(kg) 1900 2060 1900 2060
Min. Turning Radius(m) 3.7 4.2 3.7 4.2
Speed range (km/h) Forward 1.6~36.5
Reverse 4.2~14.1
Speed range with Shuttle shift gear (km/h) Forward 1.6~36.5
Reverse 4.2~14.1
Engine
Specifications
Model 4G33T
Type 4-cylinder, Vertical, in-line cylinder arrangement,
Radiator cooling, 4-stroke cycle, direct injection

Rated Power(kW) 33.1
Fuel consumption (g/kW/h) ≤ 242
Rated Speed(rpm) 2400
Bore ×Stroke(mm) 95×115
Total Displacement(L) 3.26
Drive
System
Clutch Dry type, Dual function
Gear Box (3+1)×4
Main Drive One Pair of Spiral Bevel Gears
Differential Bevel gears
Differential Lock Sliding pin, foot-operated
Final Transmissions Planetary reduction gear, slinding gear
Traveling
Mechanism
Tire  Front 6.00-16 8.3-20 6.00-16 8.3-20
Rear 12.4-28 12.4-28 12.4-28 12.4-28
Steering Gear Full hydraulic power steering
Brake Wet disc (Multiple)
Hydraulic
System
Lifting Capacity at 610 mm Behind Lift Point(kg) 900
3-Point Suspension Category: Ⅱ
P.T.O. Shaft Rotating Speed(rpm) 540/1000
Spline Size 6-ф35 Rectangular Spline
