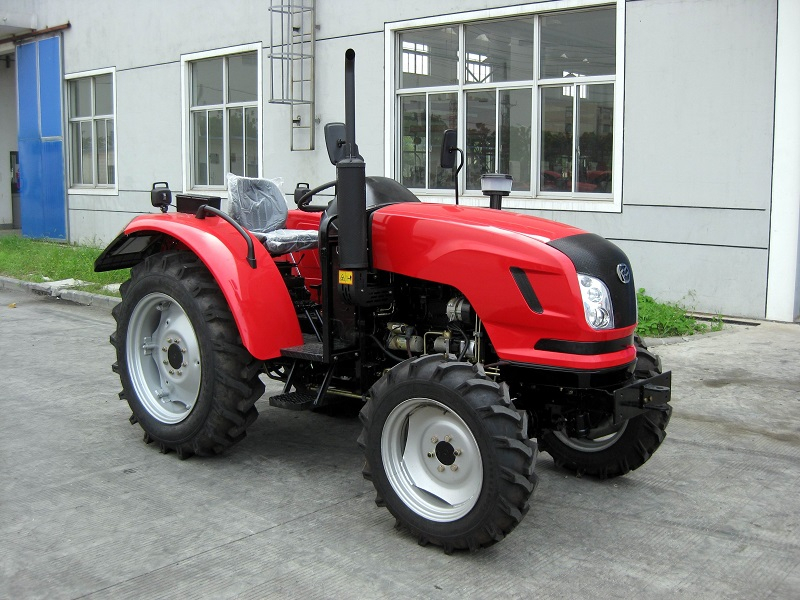

DF504 Tractor

50HP, 4WD

  • Dongfeng, DF
DONG FENG 50-60 series wheedled tractor such as DF-500, DF-504, DF-550, DF-554, DF-600, DF-604. This six model tractor are the latest developing and testing series wheeled tractors. Gearbox with engaging sleeve, It is optional of synchronizer, shuttle, creeper, Synchronous PTO and so on. CZ4102T engine from CHANG CHAI Company or LR4105T,YTR4105T,YTR1408T engine form First Tractor Company. 4-stroke, direct-injection, rich torque, good start, smooth running, low fuel consumption, low emission direct drive hydraulic pump and air pump by engine.

The series wheeled tractor has double clutch, engaging sleeve, wet disk brake by self-promotion, smooth, save labour, reliable brake. Full hydraulic steering gear with more flexible operation. The tractor has reasonable structure, wide speed range, it has twelve forward gears and four reverse gears, the speeds range form 1.6 to 39 km/hr. It can be meet the various implement to work such as rotary tillage, plowing, harrowing, seeding transportation, harvester digger, excavate and fixed power output.


Main Dispositions:
Dual-function clutch
Twin turning speeds of P.T.O.
Power steering
Safe start switch
Metal hood
Combination meter
Absorber seat with safety belt
Disc brake

Options:
Sunshade
Foldable RPOS
Rear wheel ballast
Hydraulic output
Air pump
Cabin
Model DF450 DF454 DF500 DF504 DF550 DF554
ENGINE
Type 4 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW) 45(33.1) 50(36.8) 55(40.5)
PTO, HP(kW) 38.7(28.5) 43.0(31.6) 47.3(34.8)
Rated Speed, rpm 2400 2400 2400
Displacement, L 3.26 3.26 3.26
Fuel Tank Capacity, L 70 70 70
Drive Train
Transmission Collar shift 12F/4R
Constant mesh
Synchro Shuttle(Option) Collar shift 12F/12R
Min/Max forward speed, km/h 1.6-36.5 1.6-36.5 1.6-36.5
Steering Power
Clutch Dry, dual stage
Brake Wet, multi-disk
Differential Lock Mechanical
Drive Type 2WD 4WD 2WD 4WD 2WD 4WD
PTO
Rear P.T.O, rpm Live 540/1,000
Spline Size 6-035 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement Pump, L/min 33.6 33.6 33.6
Remote Valves (Option) 2
3-Point Hitch CAT. 2
Control Sype Position, Draft, Mixed control
Lift Capacity 610 mm behind@ lift balls, kg 900 900 1200
Dimensions
Overall Length, mm 3,780 3,780 3,780
Overall Width, mm 1,615 1,615 1,615
Overall Height(Top of Cab), mm 2,250 2,250 2,250
Wheelbase, mm 1,975 1,980 1,975 1,980 1,975 1,980
Min. Ground Clearance, mm 450 370 450 370 450 370
Min.Turning Radius, m 3.70 4.20 3.70 4.20 3.70 4.20
Weight, kg 2,010 2,170 2,010 2,170 2,010 2,170
Tires
AG, Front /Rear 6.00-16/12.4-28 8.3-20/12.4-28 6.00-16/12.4-28 8.3-20/12.4-28 6.00-16/12.4-28 8.3-20/12.4-28
