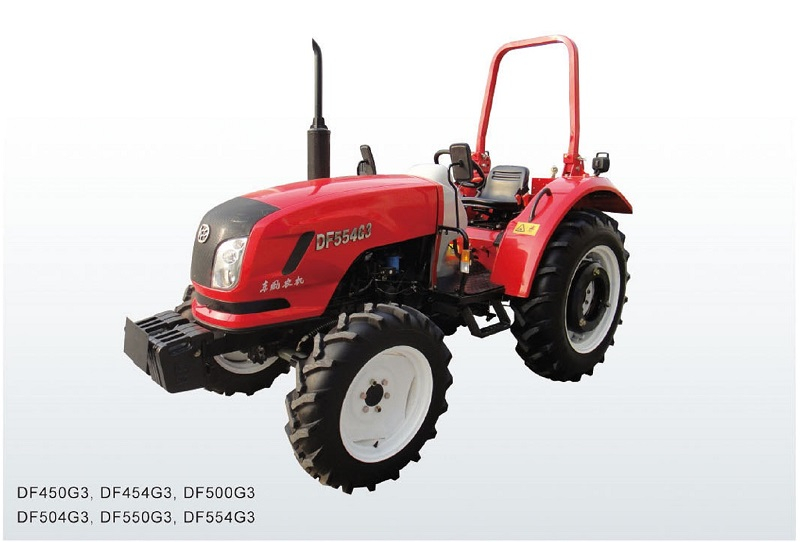

DF554G3 Tractor

55HP, 4WD

  • Dongfeng, DF
STANDARD FEATURES:

Side shift 12F/12R
Synchro mesh w/ shuttle shift
Independent Rear PTO
Single stage Clutch
Power steering
Safety start switch
Metal hood
Tilt steering wheel
Spring suspension seat
Cat.1, 3-pt hitch
AG tires

OPTIONAL FEATURES:

Independent Mid PTO
Creeper gear
Hydraulic outlets
Foldable ROPS
Sunshade (ROPS)
Paddy tires

Model DF450G3 DF454G3 DF500G3 DF504G3 DF550G3 DF554G3
ENGINE
Type 4 CyI., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW) 45(33.1) 50(36.8) 55(40.5)
PTO. HP(kW) 40.5(29.8) 45.0(33.1) 49.6(36.5)
Rated Speed, rpm 2400 2400 2400
Displacement, L 3.26 3.26 3.26
Fuel Tank Capacity, L 55 55 55
Drive Train
Transmission Side shift 12F/12R
Synchro shuttle with fully synchro mesh
Creeper (Option) 24F/24R
Min/Max forward speed, km/h 1.79-31.16 0.21-3.71(creeper) 1.79-31.16 0.21-3.71(creeper) 1.86-32 46 0.22-3.86(creeper)
Steering Power
Clutch Dry, singe-stage
Brake Wet. multi-disk
Differential Lock Mechanical
Drive Type 2WD 4WD 2WD 4WD 2WD 4WD
PTO
PTO Type Hydraulic. Independent
Rear P.T.O(Standard), rpm 540/1,000
Mid P.T.O (Option), rpm 2,000
Spine Size 6-035 Rectangular spline 6-035 Rectangular spline 6-035 Rectangular spline
Hydraulics
Pump Type
Gear(tandem)

Implement Pump, L/min 33.6 33.6 33.6
Remote Valves(Option) 2
3-Point Hitch CAT. 2
Control Type Position, Draft, Mixed control
Lift Capacity 610 mm behind® lift balls, kg 910 910 910
Dimensions
Overall Length, mm 3,738 3738 3738
Overall Width, mm 1,605 1,605 1,605
Overall Height(Top of steering), mm 1,665 1,665 1,690
Wheelbase, mm 1,880 1,880 1,880
Min. Ground Clearance, mm 355 355 380
Min.Turning Radius, m 3.5 3.7 3.5 3.7 3.6 3.9
Weight, kg 1,725 1,810 1,725 1,810 1,775 1,860
Tires
AG,Front/Rear 6.00-16/12 4-28 8.3-20/12.4-28 6.00-16/12.4-28 8.3-20/12.4-28 6.00-16/13 6-28 7.5-20/13 6-28
