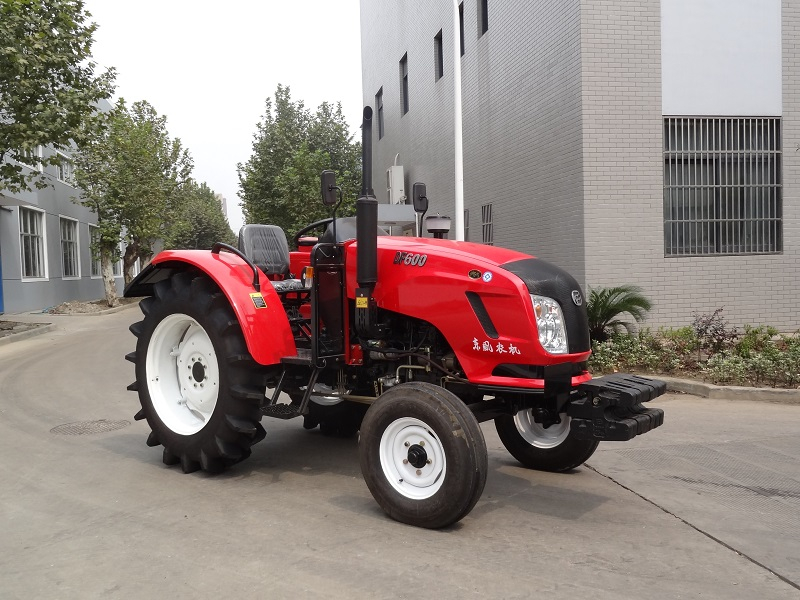

DF600 Tractor

60HP, 2WD

Quantity:



Inquire Add to Basket

Brand:
Dongfeng, DF

STANDARD FEATURES:

Side shift 12F/4R

Rear PTO 540/1,000 rpm

Dual stage Clutch

Power steering

Safety start switch

Metal hood

Spring suspension seat

Cat.2, 3-pt hitch

AG tires

OPTIONAL FEATURES:

Synchro shuttle shift

Hydraulic outlets

Air pump

Foldable ROPS

Sunshade (ROPS)

Cab

Paddy tires

Tractor Dongfeng tractor DF600 tractor DF600

Product List

Agricultural Machinery and Tractor Implements

Combine Harvester

Crawler Tractor

Spare Parts

Walking Tractor and Power Tiller

Wheeled Tractor

Navigation

Home About Us Products News Contact Us

Contact Us

EMAIL: mavis@fotma.com, fotmasale04@gmail.com
TEL: 86-27-67845266
MOB: 86-17740672791
WHATSAPP: +86-17740672791
WECHAT: 8617740672791
ADD: No. 52 Guanggu Avenue, Hongshan, Wuhan, Hubei Province, P.R.China.

Model	DF600	DF604	DF650	DF654
ENGINE
Type	4 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW)	60(44.1)		65(48.0)
PTO, HP(kW)	51.6(37.9)		55.9(41.3)
Rated Speed, rpm	2300		2300
Displacement, L	4.33		4.33
Fuel Tank Capacity, L	95		95
Drive Train
Transmission	Collar shift 12F/4R
	Constant mesh
Synchro Shuttle (Option)	Collar shift 12F/12R
Min/Max forward speed, km/h	1.5-34.7		1.5-33.7
Steering	Power
Clutch	Dry, dual-stage
Brake	Wet, multi-disk
Differential Lock	Mechanical
Drive Type	2WD	4WD	2WD	4WD
PTO
Rear PTO, rpm	Live 540/1,000
Spline Size	6-035 Rectangular spline
Hydraulics
Pump Type	Gear(tandem)
Implement Pump, L/min	36.8		36.8
Remote Valves (Option)	2
3-Point Hitch	CAT.2
Control Type	Position, Draft, Mixed control
Lift Capacity 610mm behind @ lift balls, kg	1200
Dimensions
Overall Length, mm	4,040		4,040
Overall Width, mm	1,845		1,845
Overall Height(Top of Cab), mm	2,400		2,400
Wheelbase, mm	2,060	2,080	2,060	2,080
Min. Ground Clearance, mm	450	310	450	310
Min.Turning Radius, m	3.8	4.2	3.8	4.2
Weight, kg	2,150	2,305	2,180	2,400
Tires
AG, Front /Rear	6.5-16/14.9-28	8.3-24/14.9-28	6.5-20/14.9-30	8.3-24/14.9-30

Model	DF600	DF604	DF650	DF654
ENGINE
Type	4 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW)	60(44.1)		65(48.0)
PTO, HP(kW)	51.6(37.9)		55.9(41.3)
Rated Speed, rpm	2300		2300
Displacement, L	4.33		4.33
Fuel Tank Capacity, L	95		95
Drive Train
Transmission	Collar shift 12F/4R
	Constant mesh
Synchro Shuttle (Option)	Collar shift 12F/12R
Min/Max forward speed, km/h	1.5-34.7		1.5-33.7
Steering	Power
Clutch	Dry, dual-stage
Brake	Wet, multi-disk
Differential Lock	Mechanical
Drive Type	2WD	4WD	2WD	4WD
PTO
Rear PTO, rpm	Live 540/1,000
Spline Size	6-035 Rectangular spline
Hydraulics
Pump Type	Gear(tandem)
Implement Pump, L/min	36.8		36.8
Remote Valves (Option)	2
3-Point Hitch	CAT.2
Control Type	Position, Draft, Mixed control
Lift Capacity 610mm behind @ lift balls, kg	1200
Dimensions
Overall Length, mm	4,040		4,040
Overall Width, mm	1,845		1,845
Overall Height(Top of Cab), mm	2,400		2,400
Wheelbase, mm	2,060	2,080	2,060	2,080
Min. Ground Clearance, mm	450	310	450	310
Min.Turning Radius, m	3.8	4.2	3.8	4.2
Weight, kg	2,150	2,305	2,180	2,400
Tires
AG, Front /Rear	6.5-16/14.9-28	8.3-24/14.9-28	6.5-20/14.9-30	8.3-24/14.9-30
