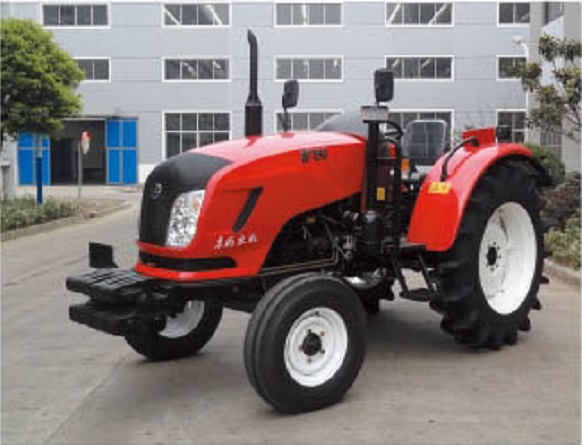

DF750 Tractor

75HP, 2WD

  • Dongfeng, DF
STANDARD FEATURES

Side shift 12F/4R
Rear PTO 540/1,000 rpm
Dual stage Clutch
Power steering
Safety start switch
Metal hood
Spring suspension seat
Cat.2, 3-pt hitch
AG tires

OPTIONAL FEATURES

Synchro shuttle shift
Hydraulic outlets
Air pump
Foldable ROPS
Sunshade (ROPS)
Cab
Paddy tires

Model DF700 DF704 DF750 DF754
ENGINE
Type 4 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW) 70(51.5) 75(55.1)
PTO, HP(kW) 60.2(44.3) 64.5(47.4)
Rated Speed, rpm 2300 2300
Displacement, L 4.76 4.76
Fuel Tank Capacity, L 95 95
Drive Train
Transmission Collar shift 12F/4R
Constant mesh
Synchro Shuttle(Option) Collar shift 12F/12R
Min/Max forward speed, km/h 1.5-33.7 1.5-33.7
Steering Power
Clutch Dry, dual-stage
Brake Wet, multi-disk
Differential Lock Mechanical
Drive Type 2WD 4WD 2WD 4WD
PTO
Rear PTO,rpm Live 540/1,000
Spline Size 6-035 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement Pump, L/min 36.8 36.8
Remote Valves (Option) 2
3-Point Hitch CAT. 2
Control Type Position, Draft, Mixed control
Lift Capacity 610mm behind@ lift balls, kg 1200 1200
Dimensions
Overall Length, mm 4,040 4,040
Overall Width, mm 1,845 1,845
Overall Height(Top of Cab), mm 2,400 2,400
Wheelbase, mm 2,060 2,080 2,060 2,080
Min. Ground Clearance, mm 450 310 450 310
Min.Turning Radius, m 3.80 4.20 3.80 4.20
Weight, kg 2,200 2,430 2,200 2,430
Tires
AG, Front /Rear 6.5-20/14.9-30 8.3-24/14.9-30 6.5-20/14.9-30 8.3-24/14.9-30
