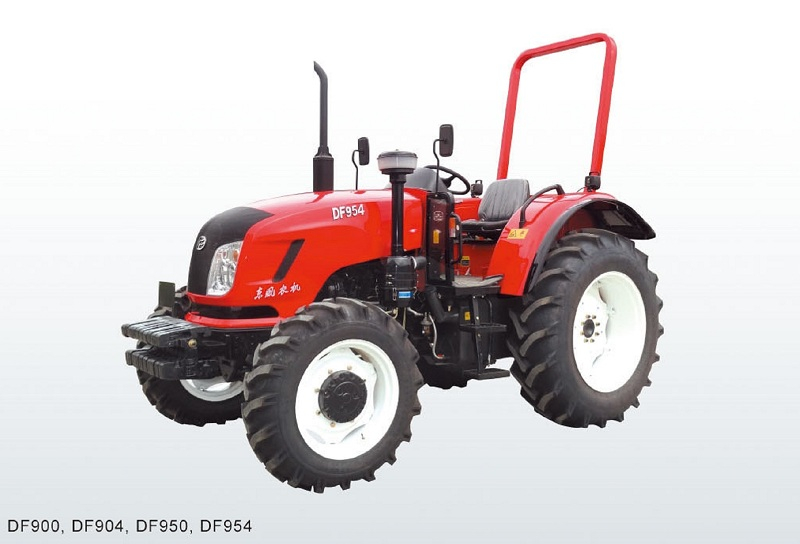

DF954 Tractor

95HP, 4WD

  • Dongfeng, DF
STANDARD FEATURES

Side shift 12F/4R
Independent PTO 540/1,000 rpm
Single stage Clutch
Power steering
Safety start switch
Metal hood
Spring suspension seat
Cat.2, 3-pt hitch
AG tires

OPTIONAL FEATURES

Hydraulic outlets
Air pump
Foldable ROPS
Sunshade (ROPS)
Cab
Paddy tires

Model DF900 DF904 DF950 DF954
ENGINE
Type 4 Cyl., direct-injection, water-cooled 4-cycle diesel engine
Engine Gross. HP(kW) 90(66.2) 95(69.9)
PTO, HP(kW) 77.4(56.9) 81.7(60.1)
Rated Speed, rpm 2300 2300
Displacement, L 5.13 5.13

Fuel Tank Capacity, L 135 135
Drive Train
Transmission Collar shift 12F/4R         Constant mesh w/ partial synchronized gears
Min/Max forward speed, km/h 1.8-33 1.8-33
Steering Power
Clutch LUK dual-function independent clutch
Brake Wet, multi-disk
Differential Lock Mechanical
Drive Type 2WD  4WD 2WD  4WD
PTO
Rear PTO, rpm Independent 540/1,000
Spline Size 6-Ø35 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement Pump. L/min 46 46
Remote Valves (Option) 2
3-Point Hitch CAT. 2
Control Type Position, Draft, Mixed control
Lift Capacity 610mm behind@ lift balls, kg 2500
Dimensions
Overall Length, mm 4,255 4,255
Overall Width, mm 2,100 2,100
Overall Height(Top of Cab), mm 2,850 2,850
Wheelbase, mm 2,352 2,352
Min. Ground Clearance, mm 476 425 476 425
Min.Turning Radius, m 4 4.8 4 4.8
Weight, kg 3,155 3,380 3,155 3,380
Tires
AG, Front /Rear 7.5-20/16.9-34 13.6-24/16.9-34 7.5-20/16.9-34 13.6-24/16.9-34
