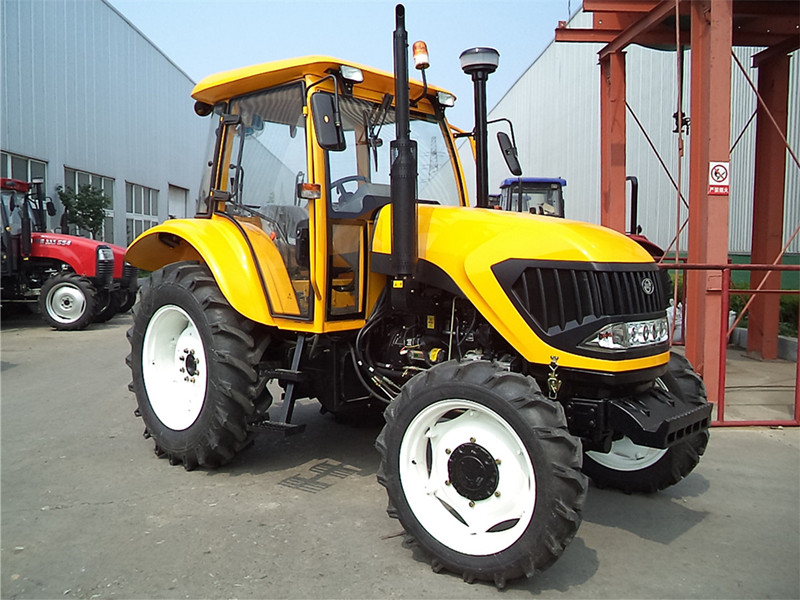

FOTMA FM704B Tractor

1. 2 pairs hydraulic output valve;
2. Luxury cabin with air conditioner and radio with USB port;
3. Dual-stage clutch;
4. Front tyre: 8.3-24;
5. Rear tyre size: 14.9-30

  • FOTMA
FM70B SERIES SPECIFICATION
Model  FM700B FM704B FM750B FM754B
Drive type  4x2 4x4 4x2 4x4
Engine
Engine   YTO or Yuchai 4 cylinder engine
Capacity of fuel tank(L)   78
Rated speed (r/min) 2200
Engine power  51.5 51.5 55.2 55.2
Lowest fuel consumption (g/kw·h) ≤242
Transmission
Clutch  Dry,Dual-stage type
PTO Speed(rpm)  760
Gearshift  8F+2R
Hydraulic system
Hydraulic output valve  2-Way ,(optional)
Three point linkage
Category of 3-point link  Rear, Category II
Lifting capacity(at point
of 610mm)KN
12.5 12.5 13 13

Technical parameter
Dimension LxWxH mm 4010x1929x2568
Wheel base(mm) 2188 2236 2188 2236
Track base(mm) front wheel 1500 1450 1500 1450
Track base(mm) rear wheel 1530 1530 1530 1530
The smallest clearance(mm) 430 340 430 340
Front tyre  6.5-20 8.3-24 6.5-20 8.3-24
Rear tyre  14.9-30
