FOTMA

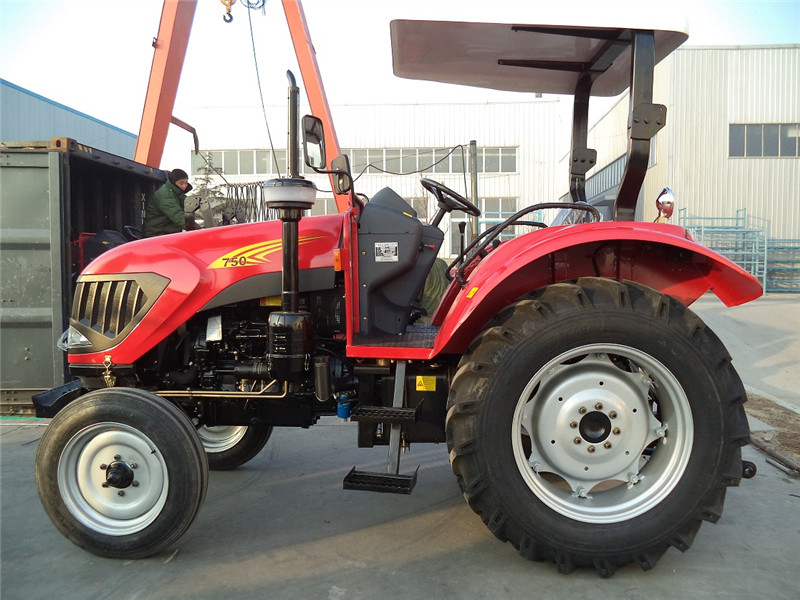

| FM70B SERIES SPECIFICATION | ||||
| Model | FM700B | FMDQ704B | FM750B | FM754B |
| Drive type | 4x2 | 4x4 | 4x2 | 4x4 |
| Engine | ||||
| Engine | YTO or Yuchai 4 cylinder engine | |||
| Capacity of fuel tank(L) | 78 | |||
| Rated speed (r/min) | 2200 | |||
| Engine power | 51.5 | 51.5 | 55.2 | 55.2 |
| Lowest fuel consumption (g/kw·h) | ≤242 | |||
| Transmission | ||||
| Clutch | Dry,Dual-stage type | |||
| PTO Speed(rpm) | 760 | |||
| Gearshift | 8F+2R | |||
| Hydraulic system | ||||
| Hydraulic output valve | 2-Way ,（optional） | |||
| Three point linkage | ||||
| Category of 3-point link | Rear, Category II | |||
| Lifting capacity(at point of 610mm)KN | 12.5 | 12.5 | 13 | 13 |
| | ||||
| Technical parameter | ||||
| Dimension LxWxH mm | 4010x1929x2568 | |||
| Wheel base(mm) | 2188 | 2236 | 2188 | 2236 |
| Track base(mm) front wheel | 1500 | 1450 | 1500 | 1450 |
| Track base(mm) rear wheel | 1530 | 1530 | 1530 | 1530 |
| The smallest clearance(mm) | 430 | 340 | 430 | 340 |
| Front tyre | 6.5-20 | 8.3-24 | 6.5-20 | 8.3-24 |
| Rear tyre | 14.9-30 | |||
| FM70B SERIES SPECIFICATION | ||||
| Model | FM700B | FMDQ704B | FM750B | FM754B |
| Drive type | 4x2 | 4x4 | 4x2 | 4x4 |
| Engine | ||||
| Engine | YTO or Yuchai 4 cylinder engine | |||
| Capacity of fuel tank(L) | 78 | |||
| Rated speed (r/min) | 2200 | |||
| Engine power | 51.5 | 51.5 | 55.2 | 55.2 |
| Lowest fuel consumption (g/kw·h) | ≤242 | |||
| Transmission | ||||
| Clutch | Dry,Dual-stage type | |||
| PTO Speed(rpm) | 760 | |||
| Gearshift | 8F+2R | |||
| Hydraulic system | ||||
| Hydraulic output valve | 2-Way ,（optional） | |||
| Three point linkage | ||||
| Category of 3-point link | Rear, Category II | |||
| Lifting capacity(at point of 610mm)KN | 12.5 | 12.5 | 13 | 13 |
| | ||||
| Technical parameter | ||||
| Dimension LxWxH mm | 4010x1929x2568 | |||
| Wheel base(mm) | 2188 | 2236 | 2188 | 2236 |
| Track base(mm) front wheel | 1500 | 1450 | 1500 | 1450 |
| Track base(mm) rear wheel | 1530 | 1530 | 1530 | 1530 |
| The smallest clearance(mm) | 430 | 340 | 430 | 340 |
| Front tyre | 6.5-20 | 8.3-24 | 6.5-20 | 8.3-24 |
| Rear tyre | 14.9-30 | |||
