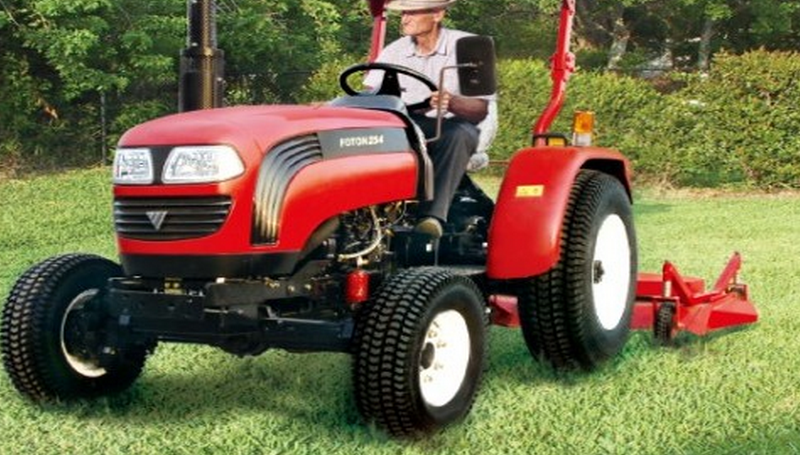

Foton TE250 Tractor

  • FOTON
1. The use of a simple floor structure and an external divider is easy for maintenance;
2. The safety frame is optional;
3. The single-acting or double-acting clutch is optional;
4. The various gear configurations, such as 8+2, 8+8, and 16+4 are optional, and the velocity distribution is reasonable to meet different operating needs;
5. The synchronized shuttle shift is optional, and the operation is easy, flexible and reliable;
6. The operations of hydraulic steering, the mandrel cylinder front drive axle are easy and flexible.
Technical parameters
Drive type
4*2
Overall dimension(L * W * H) 3210*1475*1860
Wheelbase (mm) 1616
Track(front/rear) 1100-1300/960-1460
Track(front/rear) regulating method Step/stepless
Min.Ground clearance(mm) 335
Min.operating weight (kg) 1280
Counterweight (max)(front/rear) 54/124
Gears(forward/reverse/creeper) 8+2
Theoretical speed of each gear(forward/reverse) 1.72-26.02/2.25-10.39;1.72-26.02/1.61-24.24;0.37-26.02/0.5-10.78
Engine
Brand Laidong, Jiangdong, lijia
Engine type In-line, four-stroke
Intake mode Natural intake
Number of cylinders 3
Bore 70
Stroke 105
Displacement(L) 1.65
Engine rated power kW@rpm 18.8
Rated speed 2350
Air cleaner type Dry or wet type
Type of cooling system Water-cooled
Max. Torque@ revolving speed (rpm) ≥88/1650
Specific fuel consumption at rated conditions (g/kW.h) ≤278
Fuel tank capacity (L) 29
Steering brake system
Type of steering system Hydraulic/mechanical
Type of steering gear Cam and roller steering gear/cycloid orbitrol steering gear
Type of braking system Shoe type
Transmission system
Clutch type Single-action/double action
Gearbox type Two-axis mechanical gearbox
Gearbox shift mode Shift sleeve +sliding gear
Type of central transmission Spiral bevel gear type
Final transmission mode (front/rear) Built-in type, single-stage spur gear
Walking system
Frame type Frameless
Working device
Type of hydraulic suspension system Open-center, separated type
Type of linkage Three point rear linkage
Linkage classes Class 0 or class I
Lift capacity(610mm point))(kN) 5.8
Regulating mode Positioning control and floating control
Type of PTO shaft Non-independent type
The number of PTO shaft splines 6 splines/8splines
Outer diameter of PTO shaft spline φ35/φ38
PTO shaft speed 540/760 or 540/1000
Hydraulic system
Hydraulic output flow (L/min) 26
