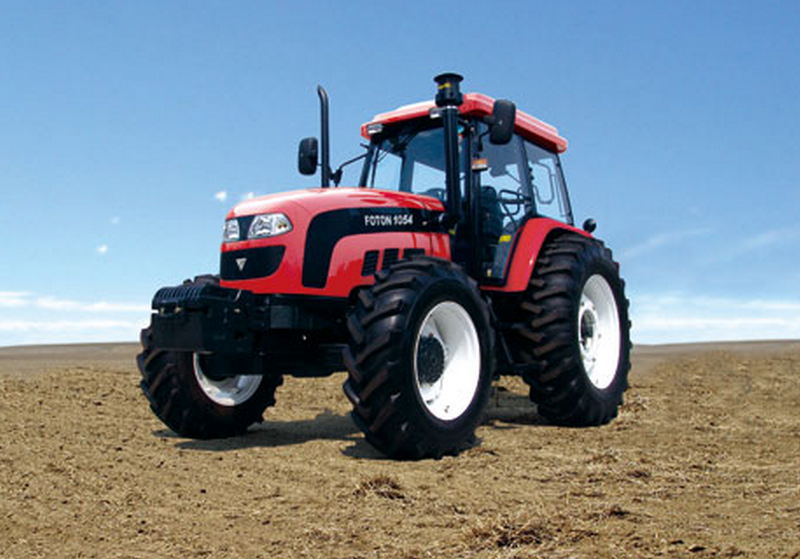

Foton TF1154 Tractor

Quantity:
  • FOTON

1. The use of flat floors, hanging pedals, side manipulation, 16+8 shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution. Optional 16+16 synchronizer shuttle shift models make the manipulation more convenient;
2. The imported German LUK clutch has a reliable performance, a large torque reserve coefficient and a high transmissiton ability;
3. 240-liter lower large fuel tank, a long operation time;
4. The optional U.S. ACTUANT combination instruments can achieve a stable work and a high reliability;
5. GOST certification model is available.
Technical parameters
Drive type
4*4
Overall dimension(L * W * H) 5060*2345*2995
Wheelbase (mm) 2582/2657(Front Drive Axle of Midengine Steering Fuel Cylinder)
Track(front/rear) 1784~2202/1620~2420
Track(front/rear)regulating method Step/stepless
Minimum ground clearance 395
Min.operating weight(kg) 5545
Counterweight (max) (front/rear) 440/516
Gears(forward/reverse/creeper) 16+8
Theoretical speed of each gear(forward/reverse) 1.25-29.71/2.0-27
Engine
Brand Lovol Power
Engine type In-line, four-stroke
Intake mode Supercharged
Cylinder number 6
Bore 100
Stroke 127
Displacement(L) 6
Engine rated power kW@rpm 84.5
Rated speed 2200
Air cleaner type Dry type
Type of cooling system Forced water-cooled
Max. Torque@ revolving speed (rpm) 387/1500~1700
Specific fuel consumption at rated conditions (g/kW.h) ≤248
Fuel tank capacity (L) 240
Steering brake system
Type of steering system Hydraulic steering
Type of steering gear Cycloid orbitrol steering gear
Type of braking system Wet type, disc type, static hydraulic control
Transmission system
Clutch type Dry type, double-action clutch
Gearbox type Two-axis mechanical gearbox
Gearbox shift mode Shift sleeve
Type of central transmission Spiral bevel gear type
Final transmission mode(front/rear) Single-stage spur gear
Walking system
Frame type Frameless
Tire Model (front/rear) 14.9-26/18.4-38
Working device
Type of hydraulic suspension system Open-center, separated type
Type of linkage Three point rear linkage
Linkage classes Class II
Elevating force(610mm)(kN) ≥25
Regulating mode Depth control, floating control
Type of PTO shaft Rear separated type
The number of PTO shaft splines 6 /8/21 splines
Outer diameter of PTO shaft spline φ35/φ38/φ35
PTO shaft speed 540/1 000 or 760/1 000
Hydraulic system
Hydraulic output flow (L/min) 52
