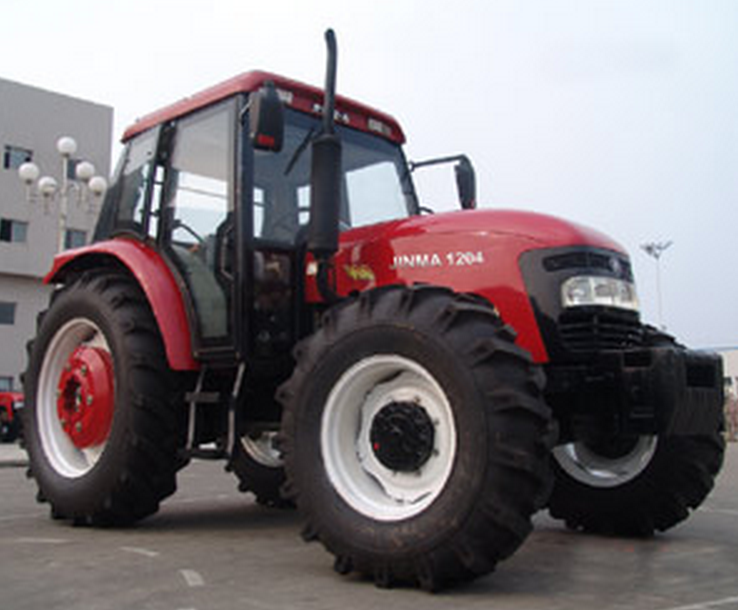

Jinma 1204 Tractor

  • Jinma, JM

Tractor
Parameters

Model

JM-1204

Drive Type

4WD

Overall Dimensions   L*W*H(mm)

4800X2330X2980

Wheel Track(mm)

Front

1808-2148

Rear

1656-2156

Wheel Base(mm)

2689

Ground
Clearance(mm)

475

Rated Traction Force(N)

 26000

Construction Mass(kg)

4600

Min.Turning Radius(m)

6.8

Speed ( Withoutcreeper km/h)

Forward

2.24,3.34,4.06,6.34,4.76,7.08,8.61,13.46,
10.37,15.43,18.77,29.32

Reverse

4.84,7.21,8.76,13.69

Engine
SpecificationsClutch

Model

LRC6108T79

Type

6  -cylinder 4-stroke cycle wter cooled,

Rated Power(kw/hp)

88.2/120

Rated Speed(rpm)

2400

Bore*Stroke(mm)

108*135

Total Displacement(L)

7.41

Drive
System

Clutch

 Dual Stage

Gear Box

4*(3+1)Sleeve gear shift

Main Drive

One pair of spiral bevel gear

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final Transmissions

Planetary reduction gear

TRavelling
Mechanism

Tyre

Front

14.9-24

Rear

18.4-38

Steering Gear

Hydraulic steering

Brake

Oil immersed multiplate disc

Working Device

Hydraulic System

Lifting Capacity at610mm Behind Lift Point(N)

26000

3-Point Suspension

Category:Ⅱ

P.T.O.shaft

Rotating

540 OR 1000

Spkine Size

21-φ35 involute spline

OPTIONS Synchronizer gear,fans,heating,and air-conditioned cab
