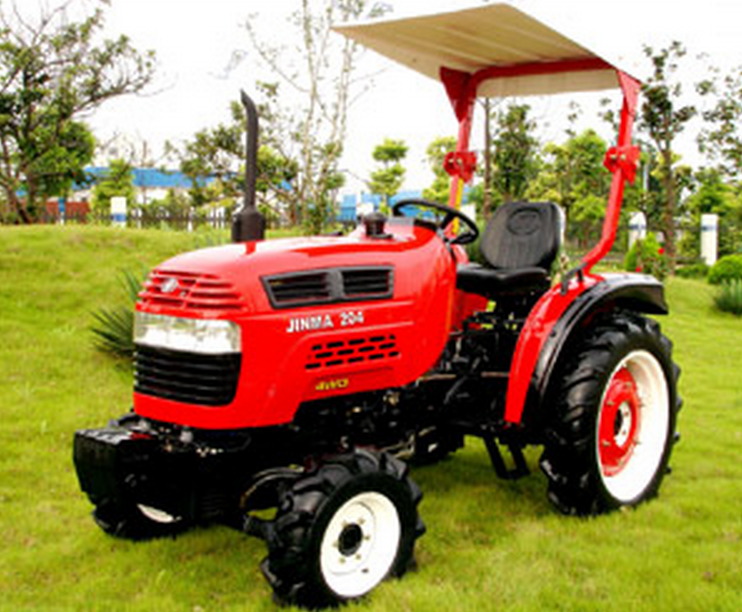

Jinma 204 Tractor

  • Jinma, JM

Model

JM-204

Drive Type

4WD

Overall Dimensions
L*W*H(mm):

3080x1280x1930

Wheel Track(mm)

Front

1000-1100

Rear

1040-1200

Wheel Base(mm)

1645

Ground Clearance (mm)

295

Rated Traction Force(N)

4800

Construction Mass(kg)

1120

Min.Turning Radius(m)

2.5

Theoretical Speed(Without creeper)( km/h)

Forward

1.68,3.31,5.52,7.75,15.30,25.50
0.31,0.62,1.03,1.45,2.85,4.76

Reverse

1.33,6.15,0.25,1.15

Engine
Specifications

Model

  380

Type

3-Cylinder Vertical,water cooled,4 stroke cycle

Rated Power(kw/hp)

14.7/20

Rated Speed (rpm)

2400

Bore*Stroke(mm)

80*90

Total Displacement(L)

1.357

Drive
System

Clutch

Dual-Stage

Gear Box

(3+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmission

External gearing, Spur Gear

Traveling
Mechanism

Tyre

Front

6.00-12

Rear

8.3-24

Steering Gear

Full Hydraulic Steering

Brake

Shoe type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

3600

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

540/1000

Spline Size

6-Φ35Rectangular Spline

OPTIONS ROL BAR,CANOPY,SHUTTLE,HYDRAULIC STEERING,TURF TYRE,CAB
