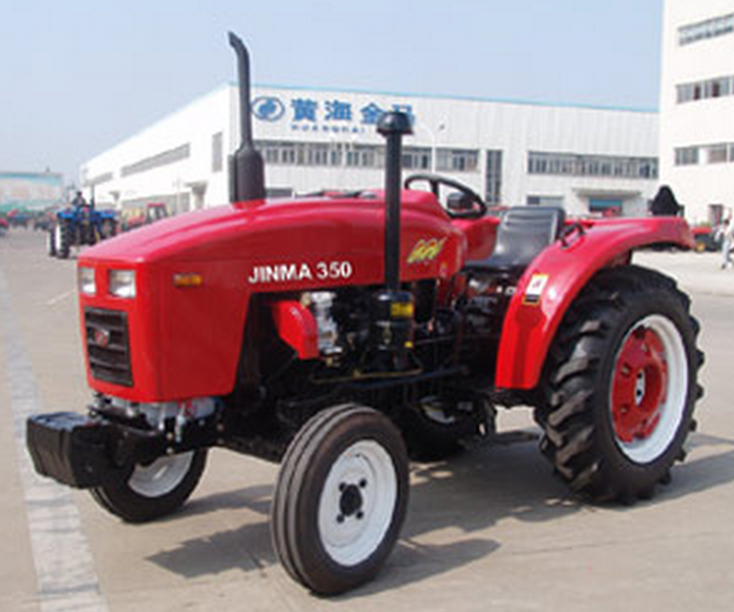

Jinma 350 Tractor

Quantity:
  • Jinma, JM

Tracor
Parameters

Model

JM-350

Drive Type

2WD

Overall Dimensions L*W*H(mm):

3357x1435x1954

WheelTrack(mm)

Front

1050-1450

Rear

1150-1450

Wheel Base(mm)

1776.5

Ground Clearance (mm)

355

Rated Traction Force(N)

7000

Construction Mass(kg)

1520

Min.Turning Radius(m)

3.5

Theoretical Speed (With out creeper gear(km/h)

Forward

2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867

Reverse

2.861,13.2

Engine
Specifications

Model

TY3100/4L22T

Type

3/4-Cylinder,Vertical,Water-Cooed,4 Stroke Cycle

Rated Power(kw/hp)

25.7/35

Rated Speed (rpm)

2300/2350

Bore*Stroke(mm)

100*105/85*95

Total Displacement(L)

2.47/2.156

Drive
System

Clutch

Dual stage

Gear Box

(4+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmissions

Spur Gear,External,Gearing

Travelling
Mechanism

Tyre

Front

5.00-16

Rear

11.2-24

Steering Gear

Power Steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

5800

3-Point Suspension

Category:I

P.T.O Shaft

Speed (rpm)

540/720 or
540/1000

Spline Size

6-Φ35Rectangular Spline

OPTIONS ROLL BAR,CANOPY,CAB
