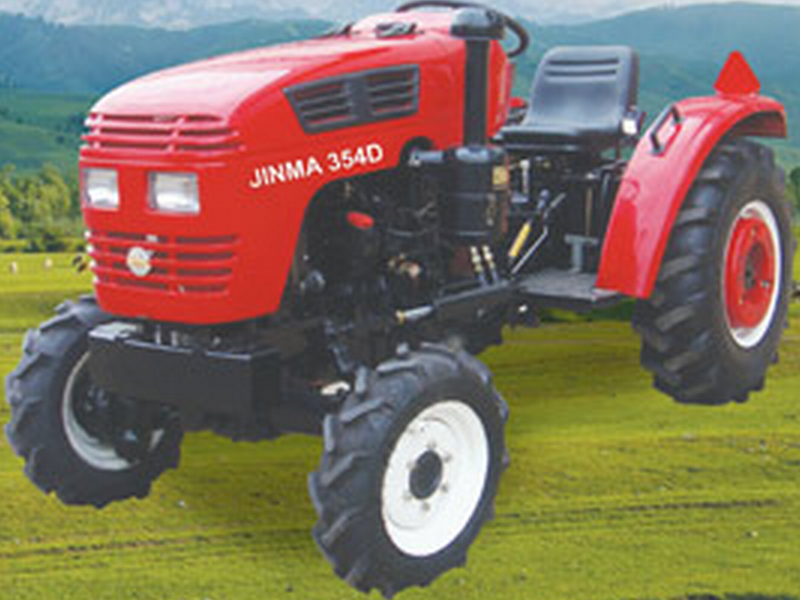

Jinma 354D Tractor

Quantity:
  • Jinma, JM

Tractor
Parameters

Model

JM-354D

Drive Type

4WD

Overall Dimensions
L*W*H(mm):

2780x1230x1200

Wheel Track (mm)

Front

1040

Rear

1010

Wheel Base(mm)

1745

Ground Clearance (mm)

240

Rated Traction Force(N)

4000

Construction Mass(kg)

1260

Min. Turning Radius(m)

2.4

Theoretical Speed
(Without creeper)( km/h)

Forward

1.39,2.12,3.32,4.57,
6.4,9.78,15.3,21.2,

Reverse

1.82,8.83











Engine
Specifications

Model

TY3100

Type

3-Cylinder Vertical, water cooled,4 stroke cycle

Rated Power (kw /hp)

25.7/35

Rated Speed (rpm)

2300

Bore* Stroke(mm)

100*105

Total Displacement(L)



Drive
System

Clutch

9”single Stage

Gear Box

(4+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmission

Spur Gear , External Gearing

Travelling
Mechanism

Tyre

Front

5.00-12

Rear

7.50-16/ 9.5-16

Steering Gear

Full Hydraulic Steering

Brake

Shoe type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

4200

3-Point Suspension

Category :I

P.T.O
Shaft

Speed (rpm)

720/540&1000

Spline Size

6-Φ35Rectangular Spline
