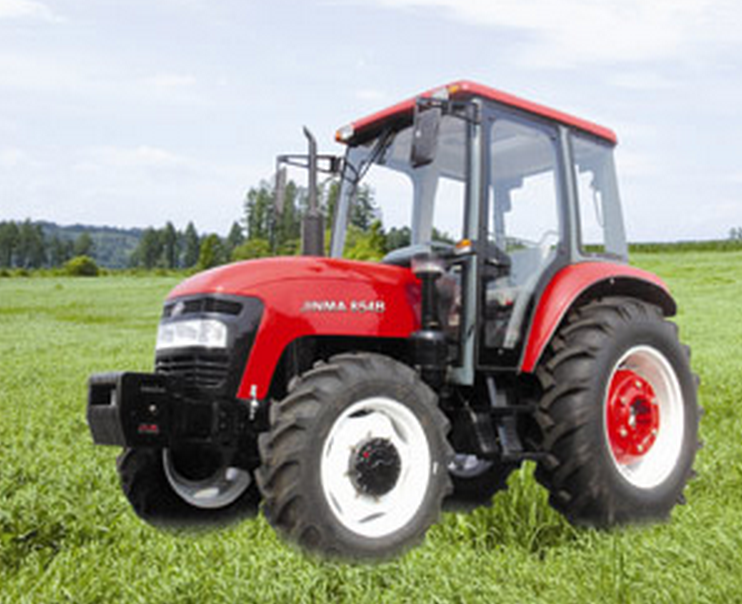

Jinma 854B Tractor

  • Jinma, JM

Ttactor
Parameters

Model

JM-854B

Drive Type

4WD

Overall Dimensions   L*W*H(mm)

4396*2038*2810

Wheel Track(mm)

Front

1610

Rear

1620-2020

Wheel Base(mm)

2195

Ground
Clearance(mm)

379

RatedTractionForce(N)

 19500

Construction Mass(kg)

3920

Min.Turning Radius(m)

4.0

TheoreticalSpeed(Withoutcreeper km/h)

Forward

2.31 ,2.60 ,5.76,8.03
,10.04,15.61,24.98,34.85

Reverse

3.10 ,4.83,7.73 ,10.78

TheoreticalSpeed(With creeper km/h)

Forward

0.46,0.72,1.15,1.61,2.00,3.12,4.99,6.97

Reverse

0.62,0.97,1.54,2.16

Engine
SpecificationsClutch

Model

QC4115

Type

4  -cylinder 4-stroke cycle wter cooled,direct-injection

Rated Power(kw/hp)

62.5(855)

Rated Speed(rpm)

2300

Bore*Stroke(mm)

108*135

Total Displacement

4.94

Drive
System

Clutch

 Dual Stage

Gear Box

4*(2+1)*2 Sleeve gear shift

Main Drive

One pair of spiral bevel gear

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final Transmissions

Planetary reduction gear

Traveling
Mechanism

Tyre

Front

11.2-24 or 12.4-24

Rear

16.9-34

Steering Gear

Hydraulic steering

Brake

Oil immersed multiplate disc

Working Device

Hydraulic System

Lifting Capacity at610mm Behind Lift Point(kg)

14100

3-Point Suspension

Category:Ⅱ

P.T.O.shaft

Rotating

540/1000 or  720/1000

Spkine Size

21-φ35 involute spline

OPTIONS CAB
