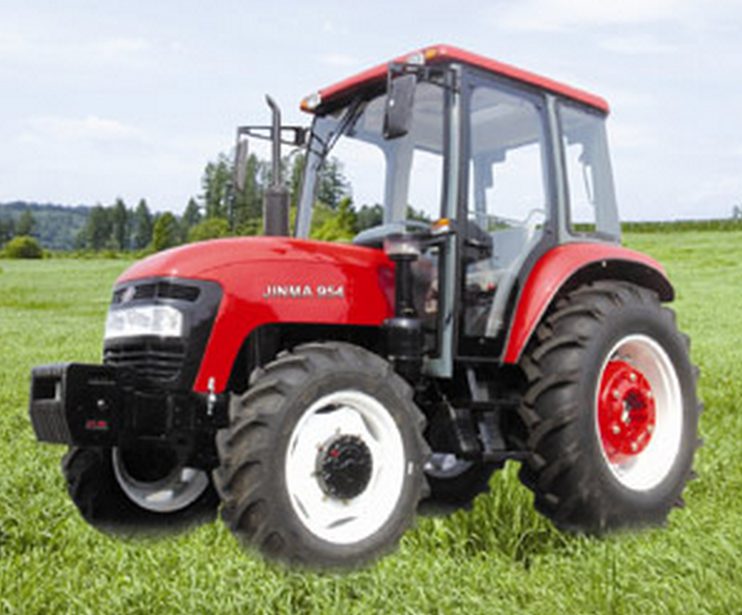

Jinma 954 Tractor

Ttactor
Parameters

Model

JM-954

Drive Type

4WD

Overall Dimensions   L*W*H(mm)

4396*2038*2810

Wheel Track(mm)

Front

1610

Rear

1620-2020

Wheel Base(mm)

2208

Ground
Clearance(mm)

379

RatedTractionForce(N)

 21500

Construction Mass(kg)

3920

Min.Turning Radius(m)

4.0

TheoreticalSpeed(Withoutcreeper km/h)

Forward

2.41 ,3.75 ,6.01 ,8.38,10.47 ,16.29 ,26.06,36.37

Reverse

3.24 ,5.04 ,8.06 ,11.25

TheoreticalSpeed(With creeper km/h)

Forward

0.48,0.75,1.20,1.68 ,2.09,3.26,5.21,7.27

Reverse

0.65,1.01,1.61,2.25

Engine
SpecificationsClutch

Model

QC4115

Type

4  -cylinder 4-stroke cycle water cooled,direct-injection

Rated Power(kw/hp)

69.9(95)

Rated Speed(rpm)

2400

Bore*Stroke(mm)

115*135

Total Displacement

5.6

Drive
System

Clutch

 Dual Stage

Gear Box

4*(2+1)*2 Sleeve gear shift

Main Drive

One pair of spiral bevel gear

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final Transmissions

Planetary reduction gear

Traveling
Mechanism

Tyre

Front

12.4-24

Rear

16.9-34

Steering Gear

Hydraulic steering

Brake

Oil immersed multiplate disc

Working Device

Hydraulic System

Lifting Capacity at610mm Behind Lift Point(kg)

15700

3-Point Suspension

Category:Ⅱ

P.T.O.shaft

Rotating

540/1000 or  720/1000

Spkine Size

21-φ35 involute spline
