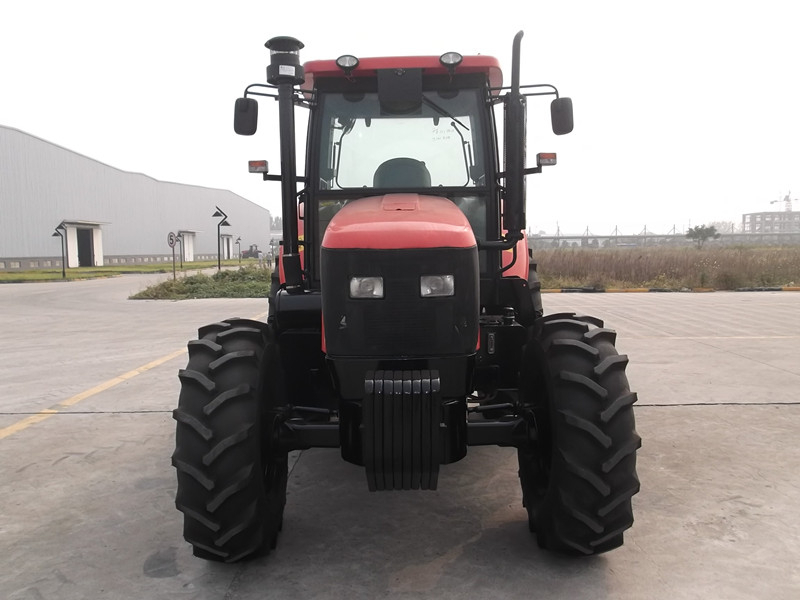

KAT 1004 tractor

1. Weichai Deutz four cylinder engine(turbocharger, intercooling)is designed with 12 hours rated power(73.5kw)
2. Fully enclosed cab with air heater
3. 16+4 shifts of transmission
4. Shifting synchronizer, integrated frame, driving system with modularized structure
5. DANA front axle,construction machinery rear axle
6. Caliper disc brake, replaceable power output shaft

  • KAT 1004
  • KAT
  • 87019110
Weichai Deutz four cylinder engine(turbocharger, intercooling)is designed with 12 hours rated power(73.5kw), fully enclosed cab, air heater, 16+4 shifts of transmission, shifting synchronizer, integrated frame, driving system with modularized structure,DANA front axle,construction machinery rear axle, caliper disc brake, replaceable power output shaft, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, two groups of hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category II.
Model
KAT1004
Engine

Power/speed kW/r/min 73.5(100)/2300
Specific Fuel Consumption g/kw.h ≤230
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 4840/2160/2990
Wheel Base mm 2688
Track(Front wheel) mm 1552-1948
Track(Rear wheel) mm 1626-2150
Min. Ground Clearance mm 480
Min.running weight kg 5100
Front counter weight kg 400
Rated Traction Force kN 24
No. of gear
16F+4R
Forward Gear Speed km/h 3-33
Reverse Gear Speed km/h 6-28
Type Model

Front Tires    / 14.9-24
Rear Tires    / 16.9-38
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 25
