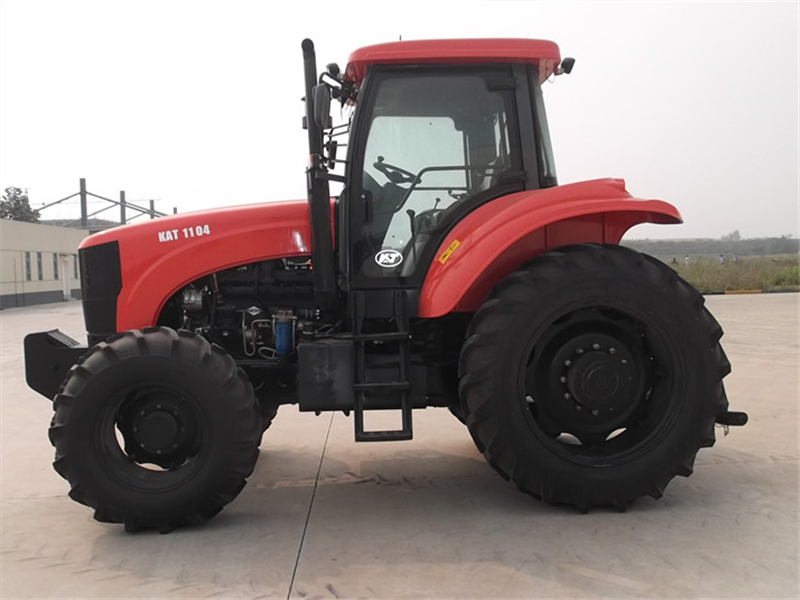

KAT 1104 tractor

1. Driving system with modularized structure
2. DANA front axle, construction machinery rear axle
3. Caliper disc brake, replaceable power output shaft
4. Revolution for power output shaft of dual revolution 540/1000r/min
5. Fully hydraulic front wheel steering, two groups of hydraulic output
6. Plough depth control method by position, floating control

  • KAT 1104
  • KAT
  • 87019110
Weichai Deutz six cylinder engine(turbocharger、intercooling) is designed with 12 hours rated power(82kw), fully enclosed cab, air heater, 16+4 shifts of transmission, shifting synchronizer, integrated frame, driving system with modularized structure,DANA front axle,construction machinery rear axle, caliper disc brake, replaceable power output shaft, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, two groups of hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category II.


Model
KAT1104
Engine

Power/speed kW/r/min 82(110)/2200
Specific Fuel Consumption g/kw.h ≤225
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 5090/2160/3040
Wheel Base mm 2688
Track(Front wheel) mm 1552-1948
Track(Rear wheel) mm 1626-2150
Min. Ground Clearance mm 450
Min.running weight kg 5700
Front counter weight kg 300
Rated Traction Force kN 26
No. of gear
16F+4R
Forward Gear Speed km/h 3-32
Reverse Gear Speed km/h 6-27
Type Model

Front Tires    / 14.9-24
Rear Tires    / 16.9-38
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 25
