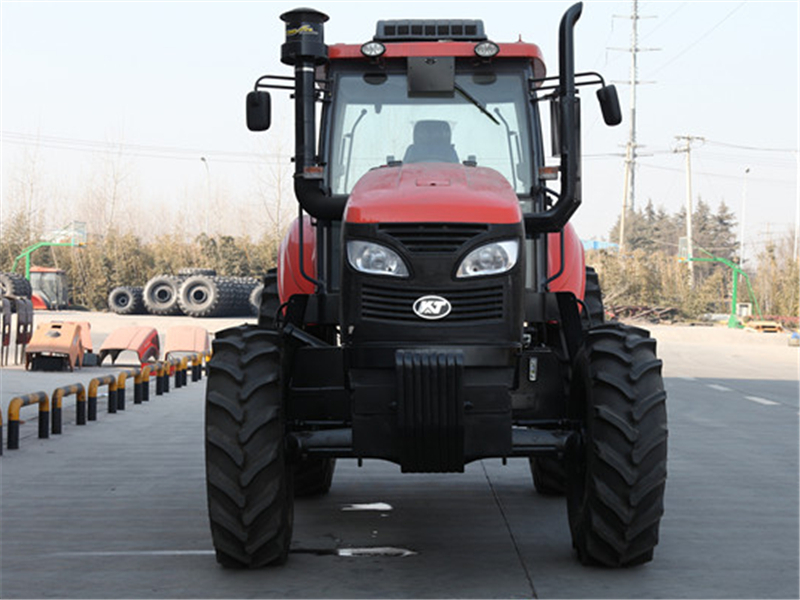

KAT 1404 tractor

1. Weichai Deutz six cylinder engine(turbocharger、intercooling)
2. Fully enclosed cab, air conditioner, air heater
3. 16+4 shifts of transmission, shifting synchronizer, integrated frame
4. Driving system with modularized structure
5. CARRARO front axle,construction machinery rear axle
6. Caliper disc brake, replaceable power output shaft

  • KAT 1404
  • KAT
  • 87019110
Weichai Deutz six cylinder engine (turbocharger,intercooling) is designed with 12 hours rated power(105kw), fully enclosed cab, air heater, air conditioner,transmission, 16+4 shifts, shifting synchronizer, integrated frame, driving system with modularized structure, CARRARO front axle,construction machinery rear axle, single rear tire, caliper disc brake, revolution for power output shaft of 540 /1000r/min, fully hydraulic front wheel steering, two groups of single/dual action hydraulic output, plough depth control method by position control ,floating control, and suspension mechanism of rear-mounted Category II.
Model
KAT1404
Engine

Power/speed kW/r/min 105(140)/2200
Specific Fuel Consumption g/kw.h ≤220
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 5090/2300/3070
Wheel Base mm 2688
Track(Front wheel) mm 1698-2122
Track(Rear wheel) mm 1626-2150
Min. Ground Clearance mm 460
Min.running weight kg 5700
Front counter weight kg 500
Rated Traction Force kN 32
No. of gear
16F+4R
Forward Gear Speed km/h 4-33
Reverse Gear Speed km/h 6-28
Type Model

Front Tires    / 14.9-24
Rear Tires    / 18.4-38
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 31
