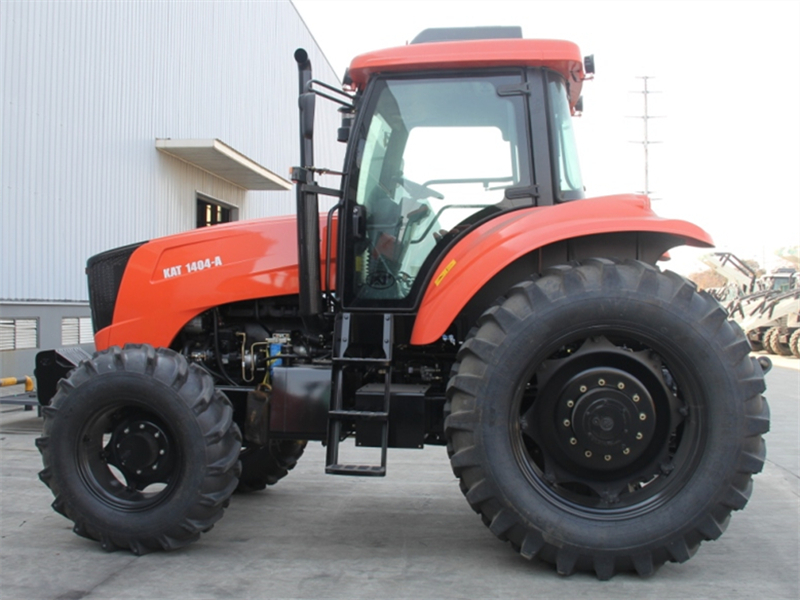

Weichai Deutz six cylinder engine (turbocharger,intercooling) is designed with 12 hours rated power(105kw), fully enclosed cab, air heater, air conditioner,transmission, 16+4 shifts, shifting synchronizer, integrated frame, driving system with modularized structure, CARRARO front axle,construction machinery rear axle, single rear tire, caliper disc brake, revolution for power output shaft of 540 /1000r/min, fully hydraulic front wheel steering, two groups of single/dual action hydraulic output, plough depth control method by position control ,floating control, and suspension mechanism of rear-mounted Category II.
Model | | KAT1404A |
Engine | Power/speed | kW/r/min | 105(140)/2200 |
Specific Fuel Consumption | g/kw.h | ≤220 |
Drive Type | / | 4×4 |
Dimension(Length/Width/Height) | mm | 5090/2300/3070 |
Wheel Base | mm | 2688 |
Track(Front wheel) | mm | 1698-2122 |
Track(Rear wheel) | mm | 1626-2150 |
Min. Ground Clearance | mm | 460 |
Min.running weight | kg | 5700 |
Front counter weight | kg | 500 |
Rated Traction Force | kN | 32 |
No. of gear | | 16F+4R |
Forward Gear | Speed | km/h | 4-33 |
Reverse Gear | Speed | km/h | 6-28 |
Type Model | Front Tires | / | 14.9-24 |
Rear Tires | / | 18.4-38 |
Power-output shaft Type | / | Rear position or independent |
power-output shaftRated Speed | r/min | 540/1000 |
Max. Pull-down piston pull | kN | 31 |
