Shangchai six cylinder engine (turbocharger, intercooling)is designed with 12 hours rated power(147.5kw), fully enclosed cab, air heater, air conditioner, Fast eight shift transmission, 27+9 shifts of transmission, shifting synchronizer,3+1 transfer case with synchronizer, integrated frame, driving system with modularized structure, CARRARO front axle,construction machinery rear axle, double rear tire, caliper disc brake, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category III.

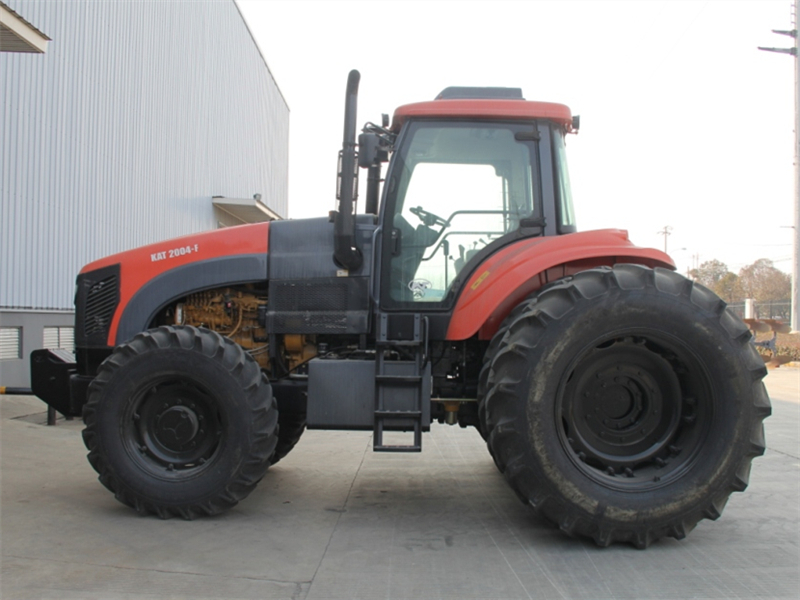

Model | | KAT2004F |
Engine | Power/speed | kW/r/min | 147.5(200)/2200 |
Specific Fuel Consumption | g/kw.h | ≤220 |
Drive Type | / | 4×4 |
Dimension(Length/Width/Height) | mm | 5990/2580/3300 |
Wheel Base | mm | 3080 |
Track(Front wheel) | mm | 1928-2240 |
Track(Rear wheel) | mm | 1952-2568 |
Min. Ground Clearance | mm | 450 |
Min.running weight | kg | 8200 |
Front counter weight | kg | 500 |
Rated Traction Force | kN | 43 |
No. of gear | | 27F+9R |
Forward Gear | Speed | km/h | 2-36 |
Reverse Gear | Speed | km/h | 2-19 |
Type Model | Front Tires | / | 16.9-28 |
Rear Tires | / | 20.8-38 |
Power-output shaft Type | / | Rear position or independent |
power-output shaftRated Speed | r/min | 540/1000 |
Max. Pull-down piston pull | kN | 40 |
