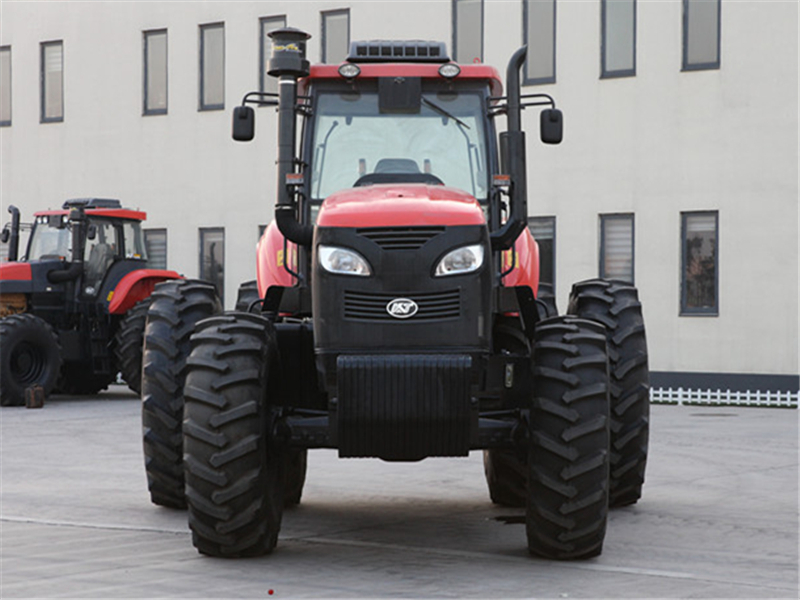

KAT 2204D tractor

1. Dongfeng Cummins six cylinder electronic control high pressure common rail engine (turbocharger, intercooling)
2. Fully enclosed cab, air heater, air conditioner, power shift transmission
3. 30+25 shifts, CARRARO front axle,PTO Shaft can replaceable
4. Revolution for power output shaft of dual revolution 540/1000r/min
5. Separated by combined electro-hydraulic control,Mechanical flexible shaft shift
6. Fully hydraulic front wheel steering

  • KAT 2204D
  • KAT
  • 87019110
Dongfeng Cummins six cylinder electronic control high pressure common rail engine (turbocharger, intercooling)is designed with 12 hours rated power(162kw), fully enclosed cab, air heater, air conditioner, power shift transmission, 30+25 shifts, CARRARO front axle,PTO Shaft can replaceable, revolution for power output shaft of dual revolution 540/1000r/min, separated by combined electro-hydraulic control,Mechanical flexible shaft shift,fully hydraulic front wheel steering, four groups hydraulic output(3 groups of mechanical+1 group of electronic control), electronic control lifting system,plough depth control method by force control, position control, force、 position comprehensive control and floating control, and suspension mechanism of rear-mounted Category III.
Model
KAT2204D
Engine

Power/speed kW/r/min 162(220)/2200
Specific Fuel Consumption g/kw.h ≤230
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 5470/3684/3350
Wheel Base mm 2950
Track(Front wheel) mm 1864-2244
Track(Rear wheel) mm 1780-2404
Min. Ground Clearance mm 390
Min.running weight kg 8600
Front counter weight kg 1000
Rated Traction Force kN 49
No. of gear
30F+25R
Forward Gear Speed km/h 2-36
Reverse Gear Speed km/h 2--28
Type Model

Front Tires    / 16.9-30R1
Rear Tires    / 20.8-42R1
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 56
