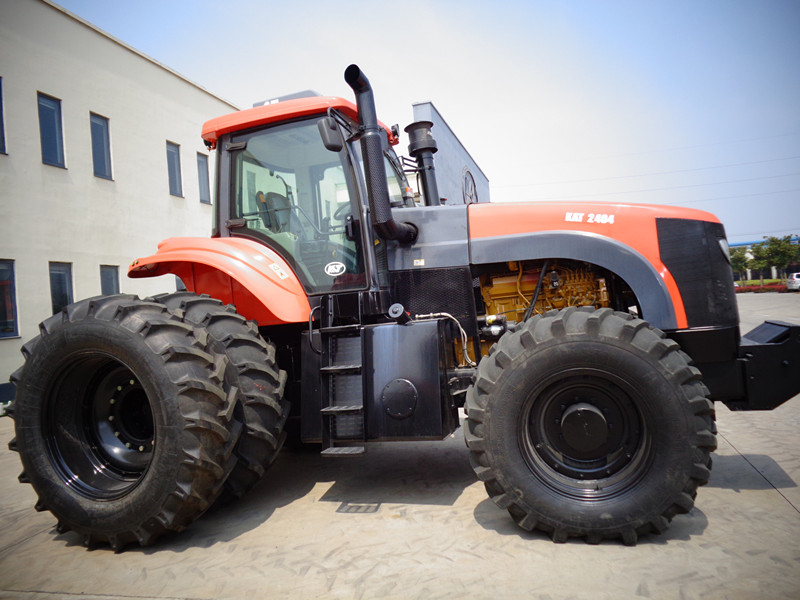

KAT 2404 tractor

1. Shangchai six cylinder engine(turbocharger、intercooling)
2. Fully enclosed cab, air conditioner, air heater
3. 18+9 shifts of transmission, shifting synchronizer, integrated frame
4. Driving system with modularized structure
5. CARRARO front axle,construction machinery rear axle
6. Caliper disc brake, replaceable power output shaft

  • KAT 2204
  • KAT
  • 87019110
Shangchai six cylinder engine (turbocharger, intercooling)is designed with 12 hours rated power(176.5kw), fully enclosed cab, air heater, air conditioner, Fast transmission, 18+9 shifts, shifting synchronizer, integrated frame, driving system with modularized structure, CARRARO front axle,construction machinery rear axle, caliper disc brake, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category III.
Model
KAT2404
Engine

Power/speed kW/r/min 176.5(240)/2200
Specific Fuel Consumption g/kw.h ≤230
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 6150/2700(dual 3800)/3490
Wheel Base mm 3220
Track(Front wheel) mm 2070-2154
Track(Rear wheel) mm 1966-2582
Min. Ground Clearance mm 450
Min.running weight kg 10000
Front counter weight kg 1000
Rated Traction Force kN 52
No. of gear
18F+9R
Forward Gear Speed km/h 2-36
Reverse Gear Speed km/h 2--21
Type Model

Front Tires    / 18.4-30
Rear Tires    / 20.8-38
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 50
