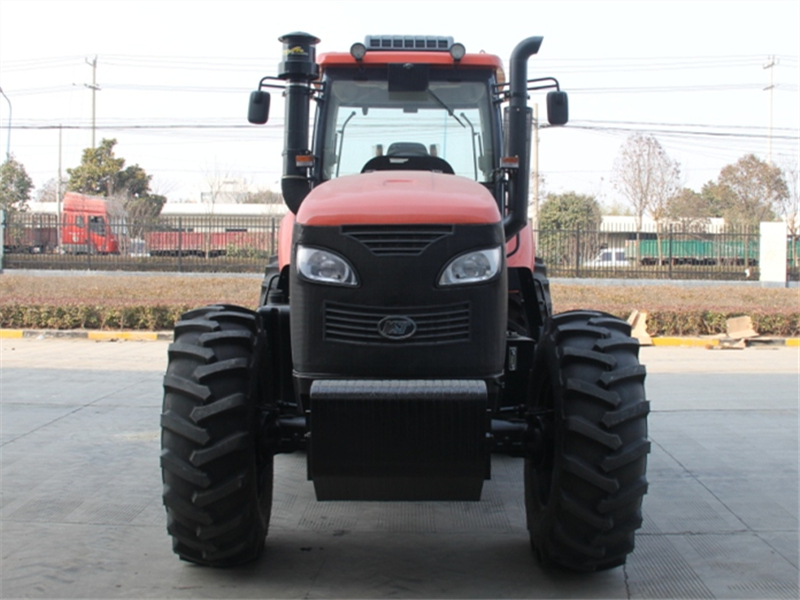

KAT 2804F tractor

1. Shangchai six cylinder engine(turbocharger、intercooling)
2. Fully enclosed cab, air conditioner, air heater
3. 18+9 shifts of transmission, shifting synchronizer, integrated frame
4. Driving system with modularized structure
5. CARRARO front axle,construction machinery rear axle
6. Caliper disc brake, replaceable power output shaft
Quantity:
  • KAT 2804F

  • KAT

  • 87019110

Shangchai six cylinder engine (turbocharger, intercooling)is designed with 12 hours rated power(206kw), fully enclosed cab, air heater, air conditioner, 18+9 shifts of Fast transmission, shifting synchronizer, integrated frame, driving system with modularized structure, CARRARO front axle,construction machinery rear axle, caliper disc brake, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category III.
Model
KAT2804F
Engine

Power/speed kW/r/min 206(280)/2200
Specific Fuel Consumption g/kw.h ≤230
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 6230/2500(dual 3800)/3490
Wheel Base mm 3220
Track(Front wheel) mm 2070-2154
Track(Rear wheel) mm 1966-2582
Min. Ground Clearance mm 450
Min.running weight kg 10000
Front counter weight kg 1000
Rated Traction Force kN 60
No. of gear
18F+9R
Forward Gear Speed km/h 2-36
Reverse Gear Speed km/h 2--21
Type Model

Front Tires    / 18.4-30R1
Rear Tires    / 20.8-38R1
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 50
