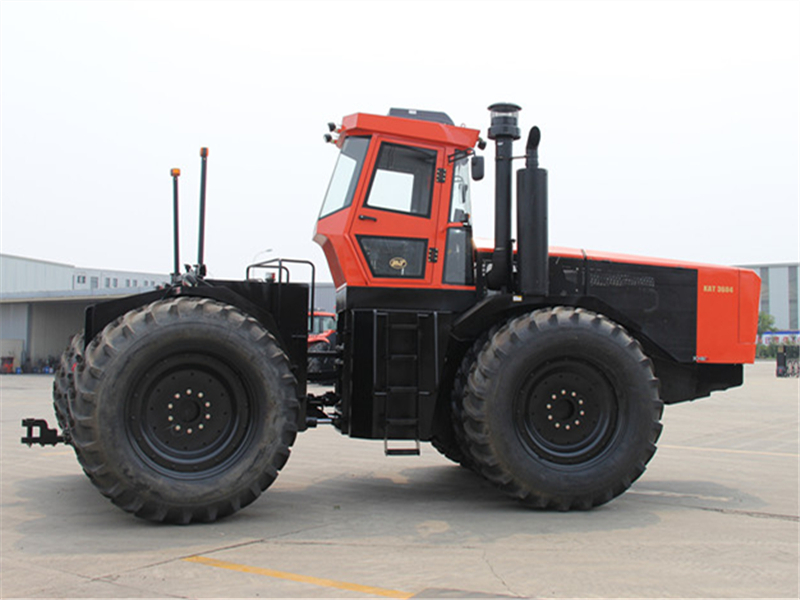

KAT 3604 tractor

1. Weichai six cylinder electronic control engine(turbocharger, intercooling)
2. Fitted with cabin, air heater, air conditioner
3. 24+12 shifts of Fast transmission
4. Shifting synchronizer, articulated frame, driving system with modularized structure
5. Construction machinery rear axle, caliper disc brake

  • KAT 3604
  • KAT
  • 87019110
Weichai six cylinder electronic control engine(turbocharger, intercooling), 12 hours rated power(265kw), cab, air heater, air conditioner, 24+12 shifts of Fast transmission, shifting synchronizer, articulated frame, driving system with modularized structure, construction machinery rear axle, caliper disc brake, front dual wheels, rear three wheels, fully hydraulic articulated steering, five groups dual and one group single hydraulic output.
Model
KAT3604
Engine

Power/speed kW/r/min 265(360)/2100
Specific Fuel Consumption g/kw.h ≤196
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 7800/3740(three5100)/4100
Wheel Base mm 3911
Track(Front wheel) mm 2546
Track(Rear wheel) mm 2546
Min. Ground Clearance mm 450
Min.running weight kg 17830
Front counter weight kg 800
Rated Traction Force kN 77
No. of gear
24F+12R
Forward Gear Speed km/h 2-36
Reverse Gear Speed km/h 2--23
Type Model

Front Tires    / 20.8-42R1
Rear Tires    / 20.8-42R
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 50
