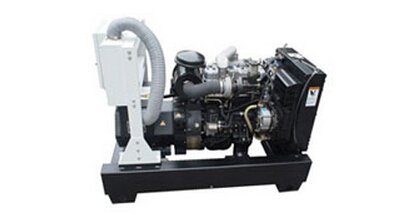

Kubota Series 6-12kw Generator

  • Kubota
Gen set model GB6K GB8K GB10K GB12K
DIESEL  ENGINE Model D905-E2BG1 D1105-E2BG V1505-E2BG D1703-E2BG
Type Four-stocke,water-cooling,vertical
Nb. of cylinder 3 3 4 3
Bore X Stroke(mm) 78x78.4 78x78.4 78x78.4 87x92.4
Ttl. Displacement(L) 1.123 1.123 1.498 1.647
Air intake mode naturally-aspriated
Rated output(KW) 7.4KW 9.5KW 12.5KW 15KW
Rated speed(rpm) 1500
Cooling method water-cooled with radiator
Starting method D.C.12V or 24V Electric starting
ALTERNATOR Model(STAMFORD) BCI164A BCI164B BCI164C BCI164D
Rated power 6KW 8KW 10KW 12KW
Rated voltage 220V; 230V; 400/230V; 380/220V, etc.,
Rated current according to the voltage be selected;
Rated frequency 50HZ
Rated speed(rpm) 1500
Power factor 1 for single phase/0.8 lagging for 3-phase
Phase connection single phase or three phase
Winding connection 3 or 4 -wire connected(12-wire for 3-phase)
Excitation method Brushless
Voltage regulation AVR
CONTROL PANEL V-meter,A-meter,Frequency meter , circuit breaker,transfer switch,AVR, temp. and pressure gauges, lighter,hour meter, key starter, etc.
G/N. WET(kg) 500/450 560/500 650/600 760/700
PACKING SIZE(cm) 185x96x110 185x96x110 200x96x110 200x96x110
