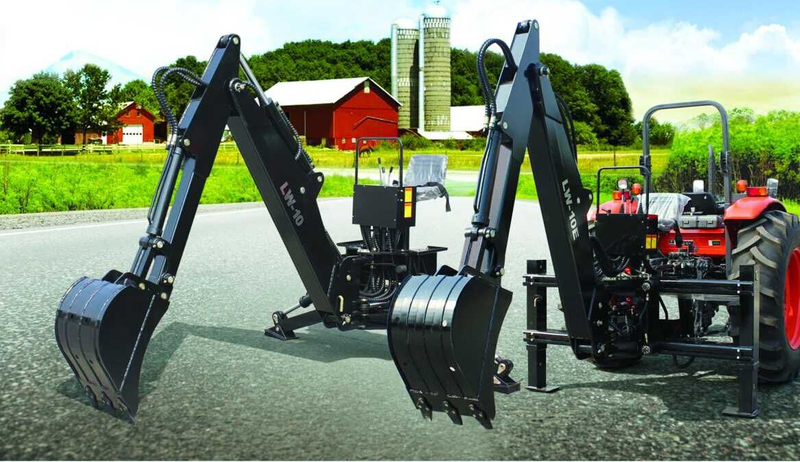

LW Backhoe

  • FOTMA
 Backhoe Model

LW-5 LW-6 LW-6E LW-7 LW-7E LW-8 LW-8E LW-10 LW-10E LW-12
 Matching Tractor
hp 15 〜25 20 〜35 30 〜55 50 〜90 70 〜120 100〜180
 Max. Dicing Depth A mm 1650 2000 2400 2800 3200 3655
 Max. Unloading Hei^it B mm 1530 1860 2050 2380 2650 3627
 Max. Dicing Hei^it C mm 2600 2970 3210 3460 3770 5040
 Working Radius D mm 2300 2700 3140 3600 3920 4510
Ground Clearance E mm 450 500 700
Side Shift Distance F mm 0 0 770 0 770 0 1000 0 1200 0
 Min. Transporting Width G mm 1150 1700 1470 1700 1470 1700 1700 1850 2000 2100
Max. Width of Supporting Legs H mm 2100 2200 1470 2200 1470 2200 1700 2300 2000 2550
 Bucket Width
in. 14 16 18 20 22
Bucket Capacity
m3 0.03 0.04 0.05 0.06 0.07 0.13
Weight
kg 360 550 600 560 620 630 700 800 1000 1500
PTO Hydraulic System 6/8/21  6/8/21-Splines,(Option)
Thumb Grab Option
