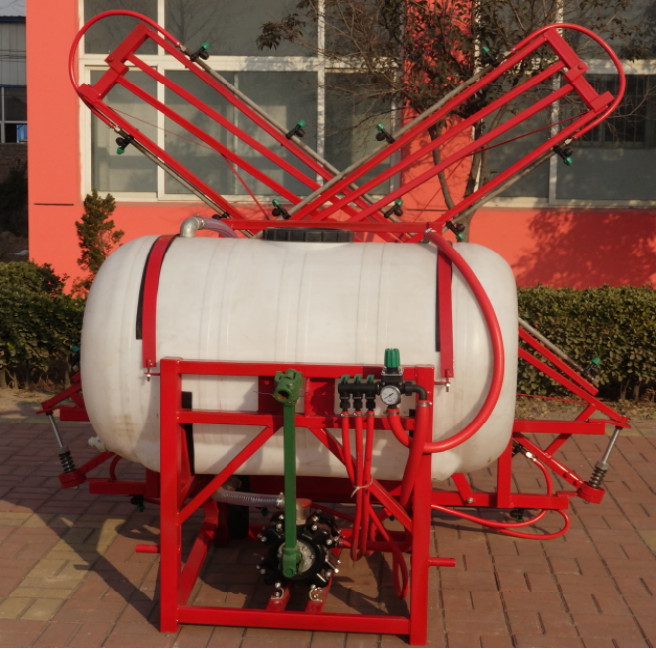

Mist Sprayer Boom Sprayer

1. It is a 3-piont mounted sprayer.
2. High spraying pressure, adjustable angle, wide working area, good penetrating, long distance, fast wind speed
3. Imported nozzles ensure uniform spraying.
4. Low energy consumption; ideal spraying effect.
Quantity:
  • 3W-200-6

  • FOTMA

Item 3W series
Chemical tank capacityL 200/300/400/500/700/900/1000
Chemical tank material polyethylene
Boom width m 6/10/12
Spraying volume of nozzle 24
Spraying angle° adjustable
Weightkg 380
Pump dischargeL/min 125
Max rotation speedrpm 540
Max pump pressurempa 1.5-2.0
Working pressurempa 0.3-0.5
Matched powerhp 70-100
Spraying volume adjustable
Recommended working speedkm/h 3-7
Mixture circulation mixture

Model Fitted Power(hp) Volume(l) Working Width(m)
3W-200-6 15-100 200 6
3W-300-6 15-100 300 6
3W-400-6 15-100 400 6
3W-500-10 15-100 500 10
3W-700-10 15-100 700 10
3W-900-10 15-100 900 10
3W-1000-10 15-100 1000 10
3W-500-12 15-100 500 12
3W-700-12 15-100 700 12
3W-900-12 15-100 900 12
3W-1000-12 15-100 1000 12
