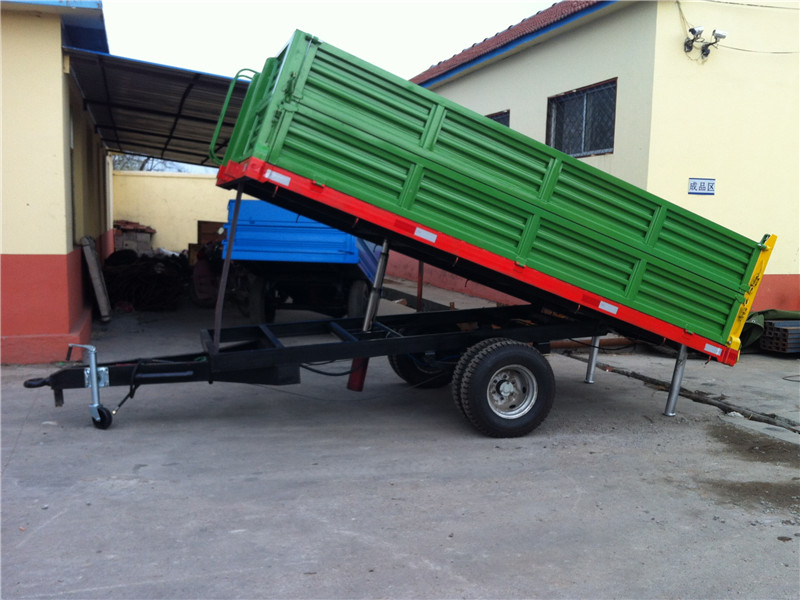

Single Axle Hydraulic Unloading Trailer

1. Good quality;
2. CE model;
3. The size could do as you need;
4. We also accept OEM.

  • 7C
  • FOTMA
Model  7C-1 7C-2 7C-3 7C-4 7C-5
Outside dimension(mm) 2900*1200*400 3800*1550*1700 4300*1650*1800 4700*1900*1850 5100*2100*1900
Loading capacity 1 ton 2 ton 3 ton 4 ton 5 ton
Dead weight 260kgs 450kgs 550kgs 850kgs 1000kgs
Tire/QTY 600-14/2 700-16/2 750-16/2 825-16/2 750-16/4
Brake forms Hand or air brake Hand or air brake Hand or air brake Hand or air brake Hand or air brake
Match power 12-18hp 12-25hp 18-40hp 25-40hp 25-50hp
Unload form hydraulic  hydraulic  hydraulic hydraulic hydraulic
