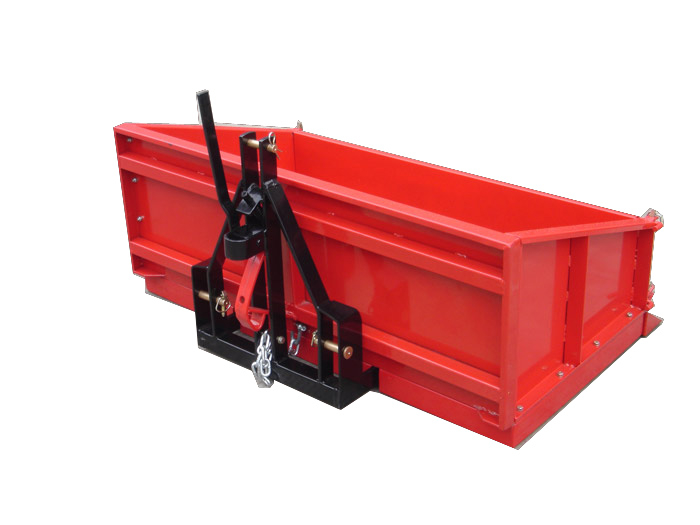

Transport Box

Quantity:
  • FOTMA

Uses:

- Perfect when collecting firewood and clearing other debris around your property;
- Ideal for moving tools, fuel tanks, sprayers, generators and dirt around even the roughest terrain;
- With the tail gate removed can also be backed into soil, sand or grain, turning the Townsunny transport box into a mini loader as well.

Features:

- High walls for transporting trailer items;
- Re-enforced rear base for reversing into loose materials for easy loading;
- Quick release tipping lever;
- Swinging&removable tail gate;
- easy to store;
- heavy duty design;
- high strength rear base for reversing into loose soil mounds.

 Transport box Specifications
MODEL TTB110 TTB120 TTB130 TTB150
WIDTH 1100mm 1200mm 1300mm 1500mm
WEIGHT 78kg 86kg 94kg 105kg
CAPACITY 0.36m3 0.40m3 0.44m3 0.51m3
MAX HP 35hp 40hp 50hp 60hp
BODY MATERIAL 3mm 3mm 3mm 3mm
HITCH cat.1 cat.1 cat.1 cat.1
