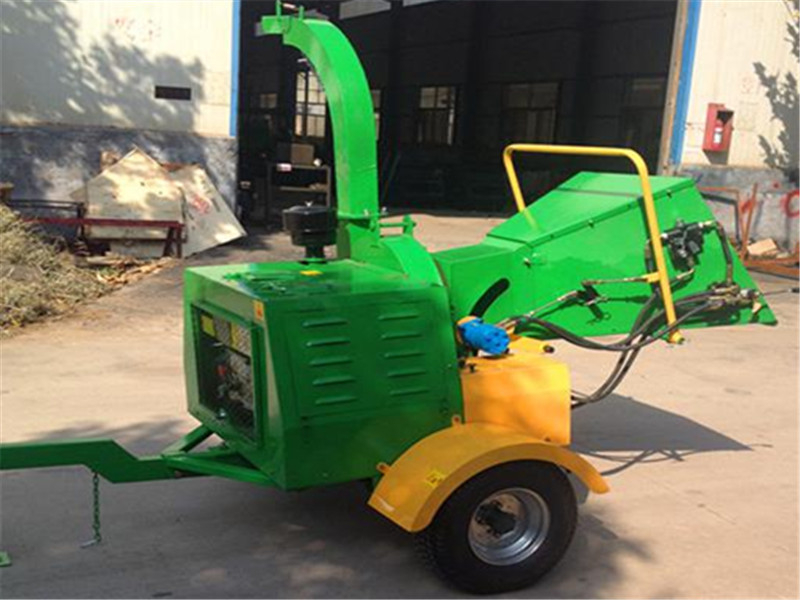

Wood Chipper with Diesel Engine

1. Wood chipper powered by diesel engine;
2. 2000mm discharge hood height;
3. Water-cooled evaporation.
  • FMWC
Model FMWC-18 FMWC-22 FMWC-40
Feeding system Hydraulic
Chipper capability 100-150mm 100-200mm 100-200mm
Flywheel diameter 640mm 640mm 640mm
Flywheel weight 85kgs 85kgs 85kgs
Blades number 1 stationary blade, 2 rotary blades
Feed hopper inner opening 200*220mm 200*220mm 200*220mm
Discharge hood height 2000mm 2000mm 2000mm
Rated RPM 1080 1080 1280
Weight 650kgs 650kgs 800kgs
Engine model Yanmar or Changchai CY1115 diesel Laidong or Shangchai
Type Single cylinder, horizontal, four-stroke Four cylinder, horizontal,
Rated power 16.2kw/2200rpm 16.2kw/2200rpm 25.7kw/2350rpm
Fuel consumption rate <245g/kw.h <245g/kw.h <238g/kw.h
Engine oil consumption <1.5g/kw.h
Cooled style Water-cooled(evaporation)
