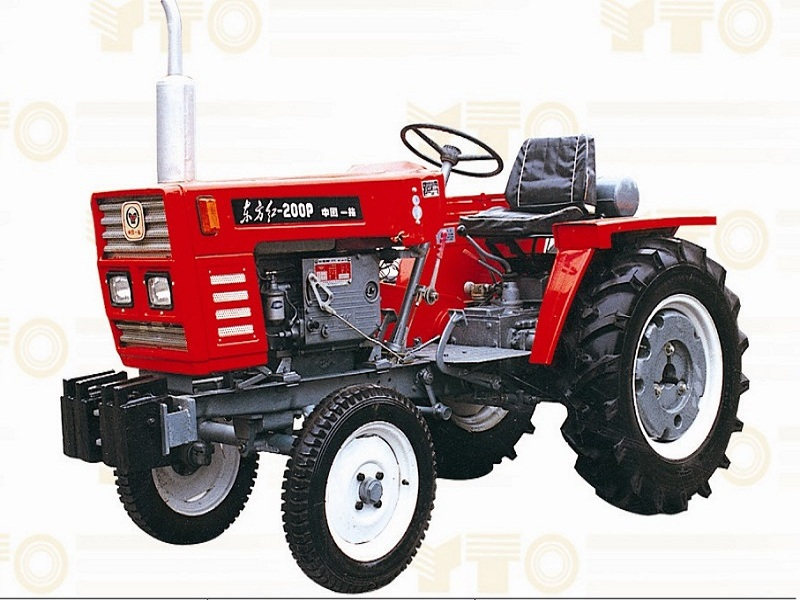

YTO 180 Tractor

  • YTO
Features
1. YTO-180/200 Wheeled Tractor
Compact structure, ease of operation and maintenance
Sensitive and reliable braking
Equipped with safety stand, tractor awning is optional
Suitable for operations on small land areas and driving on narrow roads


18-25HP Wheeled Tractor Specifications
Model YTO-180 YTO-200 YTO-SE250 YTO-SK244
Diesel engine
Model TY295IT TY295IT TY2100IT3 YD385T
Type Double cylinder, vertical, water cooled, four stroke
Displacement (L) 1.49 1.49 1.65 1.53
Rated power/speed(Kw)/(r/min) 13.2/2200 14.7/2200 18.4/2300 17.7/2350
Max. torque (N.m)/speed (r/min) 66.4/1760 71.5/1760 86/1760 83/1700
Bore x stroke (mm) 95×105 95×105 100×105 85×90
Transmission
Gear shift, forward/backward 16/4 16/4 8/4 8/2
Speed range (Km/h), forward/backward 0.79-27.0/1.05-9.79 0.78-27.44/1.03-10.07 2.17-28.13/2.59-7.86 2.07-31.54/2.72-12.59
PTO power (Kw) 10.56 11.77 15.5 15.05
PTO rotation speed(r/min) 540 540 540 540/1000
Clutch Single disc Single disc Single disc Single action (Double action optional)
Implement
Three-point linkage category Rear three-point linkage I Rear three-point linkage I Rear three-point linkage I Rear three-point suspension I
Tilling depth control mode Height adjustment Height adjustment Floating adjustment, position adjustment Height adjustment, position adjustment
Lifting force(KN) 2.98 3.2 4.2 4
Dimensions, mass, drive

Drive type 4×2 4×2 4×2 4×4
Overall dimensions (LxWxH)(mm) 2540×1205×1370 2800×1240×1400 3320×1280×1418 3453×1465×1835
Wheelbase(mm) 1440 1500 1650 1698
Min. ground clearance(mm) 271 305 325 260
Min. operating mass(with safety stand)(Kg) 1060 1060 1280 1450
Tyre spec., front /rear 4.0-14/7.5-20 4.0-14/9.5-20 4.0-16/9.5-24 6.0-16/9.5-24
Wheel tread, front/rear 1000/1000 1000/1020 1000-1300/1020 1190/1100-1300
Steering Mechanical Hydraulic steering
Brake Shoe, mechanical
