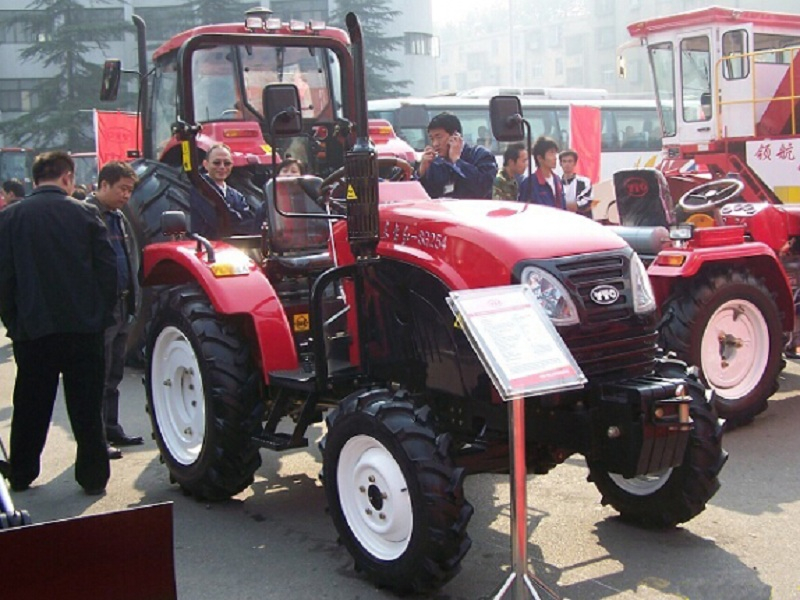

YTO SG304 Tractor

Availability:
Quantity:
  • YTO

1. The 25-35HP wheeled tractor is offered with 3/4-cylinder engine. The vigorous power makes for stable operation. Moreover, the low energy consumption is conducive to environmental protection.
2. Reliable and durable, the transmission system of our agricultural machinery is produced based on the technology from Europe. The gear position is 8F+4R. Additionally, 8F+8R and 16F+8R are optional.

3. For stronger load bearing capacity, the front drive axle of the four wheel drive tractor is offered with integrated axle housing.

4. The 25-35HP wheeled tractor uses dual clutch, double speed PTO shaft, and two hydraulic outlets. So, application in conjunction with more implements is realized.

5. Designed with suspended clutch, brake control system, main and auxiliary side mounted gear shift level, the four wheel tractor is well received by virtue of comfortable driving and convenient operation.
6. The hydraulic steering system can be manually controlled.
7. To avoid the accident caused by mal-operation, there is safety startup control device offered for the product.
8. Our eco-friendly tractor has passed E-Mark certification.
9. The infinitely variable control rear wheel is optional.



Technical Parameters
Model YTO-SG254 YTO-SG284 YTO-SG304 YTO-SG354
Wheeled Tractor
Drive Type 4×4
Overall Dimension (L×W×H)(mm) 3405×1440×1535 3490×1450×1535 3650×1590×1580
Wheel Base (mm) 1698 1738 1855
Min. Ground Clearance (mm) 315 325
Min. Operating Mass (kg) (ROPS) 1550 1570
Tyre Size (F/R) 6.00-16/9.5-24 6.50-16/11.2 -24
Wheel Track (F/R)(mm) 1200/1100-1400
Gear Shift (F/R) 8/4
Speed Range (km/h)(F/R) 2.07-29.65/2.45-7.84 2.12-30.28/2.50-8.01 2.22-32.28/2.69-8.39
Lifting Force (610mm)(KN) ≥4.14 ≥4.64 ≥4.96 ≥5.80
Lifting Force (Link Joint)(KN) 6.5 7.1 7.6 8.3
Diesel Engine
Model YD385T ZN390T YND485T
Type 3-cylinder, vertical, water cooled, four stroke 4-cylinder, vertical, water cooled, four stroke
Displacement (L) 1.53 1.81 2.16
Rated Power/Rotating Speed (kW/rpm) 18.4/2350 20.6/2400 22.1/2400 25.7/2400
Model YTO-SG250 YTO-SG280 YTO-SG300 YTO-SG350
Wheeled Tractor
Drive Type 4×2
Overall Dimensions (L×W×H)(mm) 3490×1450×1550 3650×1590×1580
Wheel Base (mm) 1690 1760
Min. Ground Clearance (mm) 320 330
Min. Operating Mass (kg) 1440 1480
Tyre Size (F/R) 5.00-16/9.5-24 5.50-16/11.2-24
Wheel Track (F/R)(mm) 1100-1400/1100-1400
Gear Shift (F/R) 8/4
Speed Range (km/h)(F/R) 2.07-29.65/2.45-7.84 2.12-30.28/2.50-8.01 2.22-32.28/2.69-8.39
Lifting Force (610mm)(KN) ≥4.14 ≥4.64 ≥4.96 ≥5.80
Lifting Force (Link Joint)(KN) 6.5 7.1 7.6 8.3
Diesel Engine
Model YD385T ZN390T YND485T
Type 3-cylinder, vertical, water cooled, four stroke 4-cylinder, vertical, water cooled, four stroke
Displacement (L) 1.53 1.81 2.16
Rated Power/Rotating Speed (kW/rpm) 18.4/2350 20.6/2400 22.1/2400 25.7/2400
